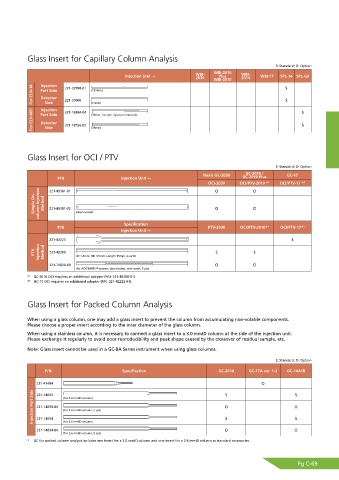

Page 219 - Shimadu Consumables Catalog

Glass Insert for Capillary Column Analysis
S: Standard; O: Option
Plus
Injection Unit –› WBI- WBI-2010 WBI- WBI-17 SPL-14 SPL-G9
2030
2014
WBI-2010
Injection
For CLH-14 Port Side 221-32998-01 (123mm) S S
Detector
221-33000
Side
(71mm)
Injection
For CLH-800 Port Side 221-18384-04 (78mm, for split injection method) S S
Detector
221-18756-02
Side
(78mm)
Glass Insert for OCI / PTV

S: Standard; O: Option
Nexis GC-2030 GC-2010 / GC-17
P/N Injection Unit –› GC-2010 Plus
OCI-2030 OCI/PTV-2010 * 1 OCI/PTV-17 * 2
221-49381-01
O
O
Simple On- column Injection Method 221-49381-02 (deactivated) O O

Specification
P/N PTV-2030 OCI/PTV-2010* 1 OCI/PTV-17* 2
Injection Unit –›
221-42223 S
PTV Injection Method 221-49300 (ID 1.5mm; OD 3.5mm; Length 95mm, quartz) S S

221-74830-09 O O
(for AOC-MEPS™ system, deactivated, with wool, 5 pcs)
* 1 GC-2010 OCI requires an additional adapter (P/N: 221-49298-91).
* 2 GC-17 OCI requires an additional adapter (P/N: 221-42222-91).

Glass Insert for Packed Column Analysis

When using a glass column, one may add a glass insert to prevent the column from accumulating non-volatile components.
Please choose a proper insert according to the inter diameter of the glass column.
When using a stainless column, it is necessary to connect a glass insert to a 3.0 mmID column at the side of the injection unit.
Please exchange it regularly to avoid poor reproducibility and peak shape caused by the crossover of residual sample, etc.
Note: Glass insert cannot be used in a GC-8A Series instrument when using glass columns.
S: Standard; O: Option

P/N Specification GC-2014 GC-17A ver. 1-3 GC-14A/B

221-41484 O
Injection Port Side 221-14093-84 (for 3.0 mmID column) O S S O
S
221-14093

(for 3.0 mmID column, 5 pcs)
S
221-14094
221-14094-84 (for 2.6 mmID column) O O
(for 2.6 mmID column, 5 pcs)
* GC for packed column analysis includes one insert for a 3.0 mmID column and one insert for a 2.6 mmID column as standard accessories.

Pg C-69
