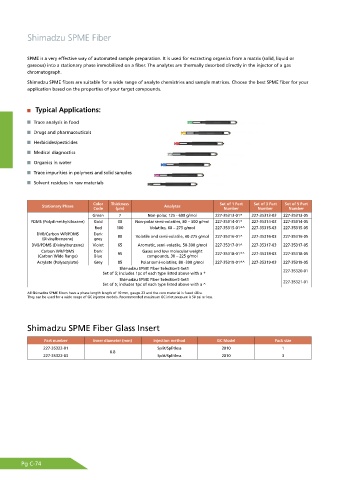

Page 224 - Shimadu Consumables Catalog

Shimadzu SPME Fiber

SPME is a very effective way of automated sample preparation. It is used for extracting organics from a matrix (solid, liquid or
gaseous) into a stationary phase immobilized on a fiber. The analytes are thermally desorbed directly in the injector of a gas
chromatograph.
Shimadzu SPME fibers are suitable for a wide range of analyte chemistries and sample matrices. Choose the best SPME fiber for your
application based on the properties of your target compounds.

Typical Applications:

Trace analysis in food
Drugs and pharmaceuticals

Herbicides/pesticides
Medical diagnostics
Organics in water
Trace impurities in polymers and solid samples

Solvent residues in raw materials

Color Thickness Set of 1 Part Set of 3 Part Set of 5 Part
Stationary Phase Analytes
Code (µm) Number Number Number
Green 7 Non-polar, 125 - 600 g/mol 227-35313-01* 227-35313-03 227-35313-05
PDMS (Polydimethylsiloxane) Gold 30 Non-polar semi-volatiles, 80 – 500 g/mol 227-35314-01* 227-35314-03 227-35314-05
Red 100 Volatiles, 60 – 275 g/mol 227-35315-01*^ 227-35315-03 227-35315-05
DVB/Carbon WR/PDMS Dark 80 Volatile and semi-volatile, 40-275 g/mol 227-35316-01^ 227-35316-03 227-35316-05
(Divinylbenzene) grey
DVB/PDMS (Divinylbenzene) Violet 65 Aromatic, semi-volatile, 50-300 g/mol 227-35317-01^ 227-35317-03 227-35317-05
Carbon WR/PDMS Dark Gases and low molecular weight
(Carbon Wide Range) Blue 95 compounds, 30 – 225 g/mol 227-35318-01*^ 227-35318-03 227-35318-05
Acrylate (Polyacrylate) Grey 85 Polar semi-volatiles, 80 -300 g/mol 227-35319-01*^ 227-35319-03 227-35319-05
Shimadzu SPME Fiber Selection5-Set1 227-35320-01
Set of 5; includes 1pc of each type listed above with a *
Shimadzu SPME Fiber Selection5-Set1
Set of 5; includes 1pc of each type listed above with a ^ 227-35321-01
All Shimadzu SPME fibers have a phase length length of 10 mm, gauge 23 and the core material is fused silica.
They can be used for a wide range of GC injector models. Recommended maximum GC inlet pressure is 50 psi or less.

Shimadzu SPME Fiber Glass Insert

Part number Inner diameter (mm) Injection method GC Model Pack size
227-35322-01 Split/Splitless 2010 1
0.8
227-35322-03 Split/Splitless 2010 3

Pg C-74
