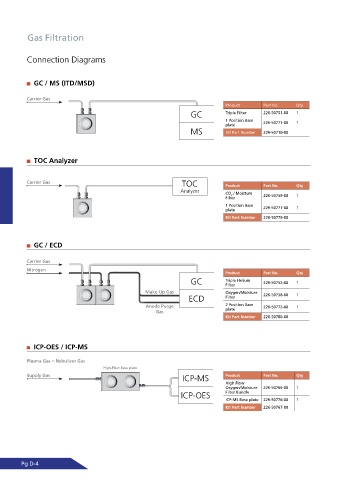

Gas Filtration
Connection Diagrams
GC / MS (ITD/MSD)
Carrier Gas
Product Part No. Qty
GC Triple Filter 226-50751-00 1
1 Position Base 226-50771-00 1
plate
MS Kit Part Number 226-50710-00
TOC Analyzer
Carrier Gas TOC Product Part No. Qty
Analyzer CO / Moisture
2
Filter 226-50759-00 1
1 Position Base 226-50771-00 1
plate
Kit Part Number 226-50779-00
GC / ECD
Carrier Gas
Nitrogen
Product Part No. Qty
GC Triple Helium 226-50752-00 1
Filter
Make-Up Gas Oxygen/Moisture 226-50758-00 1
ECD Filter
Anode Purge 2 Position Base 226-50772-00 1
Gas plate
Kit Part Number 226-50780-00
ICP-OES / ICP-MS
Plasma Gas = Nebulizer Gas
High-Flow Base plate
Supply Gas ICP-MS Product Part No. Qty
High Flow
Oxygen/Moisture 226-50766-00 1
ICP-OES Filter Bundle
ICP-MS Base plate 226-50776-00 1
Kit Part Number 226-50767-00
