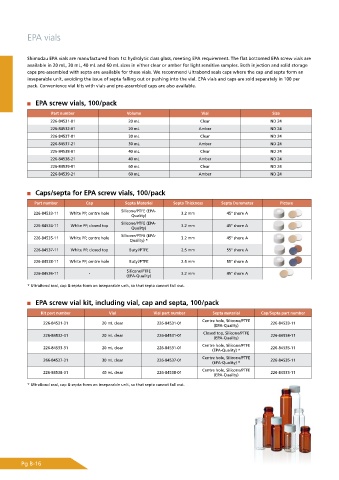

Page 144 - Shimadu Consumables Catalog

EPA vials

Shimadzu EPA vials are manufactured from 1st hydrolytic class glass, meeting EPA requirement. The flat bottomed EPA screw vials are
available in 20 mL, 30 mL, 40 mL and 60 mL sizes in either clear or amber for light sensitive samples. Both injection and solid storage
caps pre-assembled with septa are available for these vials. We recommend Ultrabond seals caps where the cap and septa form an
inseparable unit, avoiding the issue of septa falling out or pushing into the vial. EPA vials and caps are sold separately in 100 per
pack. Convenience vial kits with vials and pre-assembled caps are also available.

EPA screw vials, 100/pack
Part number Volume Vial Size
226-84531-01 20 mL Clear ND 24
226-84532-01 20 mL Amber ND 24
226-84537-01 30 mL Clear ND 24
226-84537-21 30 mL Amber ND 24
226-84538-01 40 mL Clear ND 24
226-84538-21 40 mL Amber ND 24
226-84539-01 60 mL Clear ND 24
226-84539-21 60 mL Amber ND 24

Caps/septa for EPA screw vials, 100/pack

Part number Cap Septa Material Septa Thickness Septa Durometer Picture
Silicone/PTFE (EPA-
226-84533-11 White PP, centre hole 3.2 mm 45° shore A
Quality)
Silicone/PTFE (EPA-
226-84534-11 White PP, closed top 3.2 mm 45° shore A
Quality)
Silicone/PTFE (EPA-
226-84535-11 White PP, centre hole 3.2 mm 45° shore A
Quality) *
226-84537-11 White PP, closed top Butyl/PTFE 2.5 mm 55° shore A
226-84538-11 White PP, centre hole Butyl/PTFE 2.5 mm 55° shore A
Silicone/PTFE
226-84536-11 - 3.2 mm 45° shore A
(EPA-Quality)
* UltraBond seal, cap & septa form an inseparable unit, so that septa cannot fall out.

EPA screw vial kit, including vial, cap and septa, 100/pack

Kit part number Vial Vial part number Septa material Cap/Septa part number
Centre hole, Silicone/PTFE
226-84531-31 20 mL clear 226-84531-01 226-84533-11
(EPA-Quality)
Closed top, Silicone/PTFE
226-84532-31 20 mL clear 226-84531-01 226-84534-11
(EPA-Quality)
Centre hole, Silicone/PTFE
226-84533-31 20 mL clear 226-84531-01 226-84535-11
(EPA-Quality) *
Centre hole, Silicone/PTFE
266-84537-31 30 mL clear 226-84537-01 226-84535-11
(EPA-Quality) *
Centre hole, Silicone/PTFE
226-84538-31 40 mL clear 226-84538-01 226-84533-11
(EPA-Quality)
* UltraBond seal, cap & septa form an inseparable unit, so that septa cannot fall out.

Pg B-16
