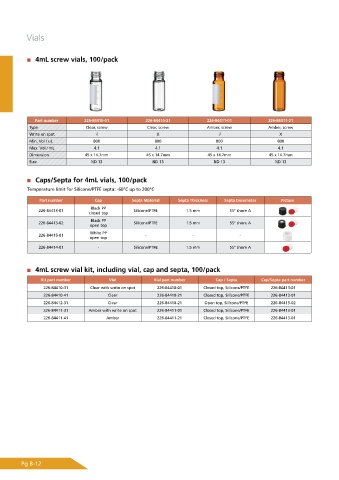

Page 140 - Shimadu Consumables Catalog

Vials

4mL screw vials, 100/pack

Part number 226-84410-01 226-84410-21 226-84411-01 226-84411-21
Type Clear, screw Clear, screw Amber, screw Amber, screw
Write on spot √ X √ X
Min. Vol / uL 800 800 800 800
Max. Vol / mL 4.1 4.1 4.1 4.1
Dimension 45 x 14.7mm 45 x 14.7mm 45 x 14.7mm 45 x 14.7mm
Size ND 13 ND 13 ND 13 ND 13

Caps/Septa for 4mL vials, 100/pack

Temperature limit for Silicone/PTFE septa: -60°C up to 200°C
Part number Cap Septa Material Septa Thickness Septa Durometer Picture
Black PP
226-84413-01 Silicone/PTFE 1.5 mm 55° shore A
closed top
Black PP
226-84413-02 Silicone/PTFE 1.5 mm 55° shore A
open top
White PP
226-84415-01 - - -
open top
226-84414-01 - Silicone/PTFE 1.5 mm 55° shore A

4mL screw vial kit, including vial, cap and septa, 100/pack

Kit part number Vial Vial part number Cap / Septa Cap/Septa part number
226-84410-31 Clear with write on spot 226-84410-01 Closed top, Silicone/PTFE 226-84413-01
226-84410-41 Clear 226-84410-21 Closed top, Silicone/PTFE 226-84413-01
226-84412-31 Clear 226-84410-21 Open top, Silicone/PTFE 226-84413-02
226-84411-31 Amber with write on spot 226-84411-01 Closed top, Silicone/PTFE 226-84413-01
226-84411-41 Amber 226-84411-21 Closed top, Silicone/PTFE 226-84413-01

Pg B-12
