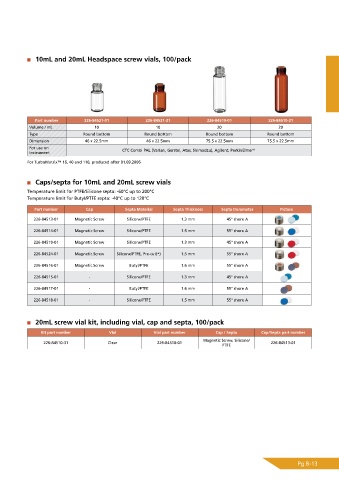

10mL and 20mL Headspace screw vials, 100/pack

Part number 226-84521-01 226-84521-21 226-84510-01 226-84510-21
Volume / mL 10 10 20 20
Type Round bottom Round bottom Round bottom Round bottom
Dimension 46 x 22.5mm 46 x 22.5mm 75.5 x 22.5mm 75.5 x 22.5mm
For use on CTC Combi PAL (Varian, Gerstel, Atas, Shimadzu), Agilent, PerkinElmer*
instrument
For TurboMatrix™ 16, 40 and 110, produced after 01.09.2006

Caps/septa for 10mL and 20mL screw vials
Temperature limit for PTFE/Silicone septa: -60°C up to 200°C
Temperature limit for Butyl/PTFE septa: -40°C up to 120°C
Part number Cap Septa Material Septa Thickness Septa Durometer Picture

226-84513-01 Magnetic Screw Silicone/PTFE 1.3 mm 45° shore A
226-84514-01 Magnetic Screw Silicone/PTFE 1.5 mm 55° shore A

226-84519-01 Magnetic Screw Silicone/PTFE 1.3 mm 45° shore A
226-84524-01 Magnetic Screw Silicone/PTFE, Pre-cut(*) 1.5 mm 55° shore A

226-84516-01 Magnetic Screw Butyl/PTFE 1.6 mm 55° shore A
226-84515-01 - Silicone/PTFE 1.3 mm 45° shore A

226-84517-01 - Butyl/PTFE 1.6 mm 55° shore A
226-84518-01 - Silicone/PTFE 1.5 mm 55° shore A

20mL screw vial kit, including vial, cap and septa, 100/pack
Kit part number Vial Vial part number Cap / Septa Cap/Septa part number
Magnetic Screw, Silicone/
226-84510-31 Clear 226-84510-01 226-84513-01
PTFE
