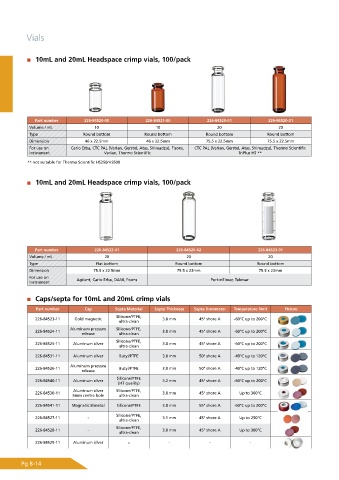

Page 142 - Shimadu Consumables Catalog

Vials

10mL and 20mL Headspace crimp vials, 100/pack

Part number 226-84520-00 226-84521-00 226-84520-01 226-84520-21
Volume / mL 10 10 20 20
Type Round bottom Round bottom Round bottom Round bottom
Dimension 46 x 22.5mm 46 x 22.5mm 75.5 x 22.5mm 75.5 x 22.5mm
For use on Carlo Erba, CTC PAL (Varian, Gerstel, Atas, Shimadzu), Fisons, CTC PAL (Varian, Gerstel, Atas, Shimadzu), Thermo Scientific
instrument Varian, Thermo Scientific TriPlus HS **
** not suitable for Thermo Scientific HS250/HS500

10mL and 20mL Headspace crimp vials, 100/pack

Part number 226-84522-01 226-84520-02 226-84523-01
Volume / mL 20 20 20
Type Flat bottom Round bottom Round bottom
Dimension 75.5 x 22.5mm 75.5 x 23mm 75.5 x 23mm
For use on Agilent, Carlo Erba, DANI, Fisons PerkinElmer, Tekmar
instrument

Caps/septa for 10mL and 20mL crimp vials
Part number Cap Septa Material Septa Thickness Septa Durometer Temperature limit Picture
Silicone/PTFE,
226-84523-11 Gold magnetic 3.0 mm 45° shore A -60°C up to 200°C
ultra-clean
Aluminum pressure Silicone/PTFE,
226-84524-11 3.0 mm 45° shore A -60°C up to 200°C
release ultra-clean
Silicone/PTFE,
226-84525-11 Aluminum silver 3.0 mm 45° shore A -60°C up to 200°C
ultra-clean
226-84531-11 Aluminum silver Butyl/PTFE 3.0 mm 50° shore A -40°C up to 120°C
Aluminum pressure
226-84526-11 Butyl/PTFE 3.0 mm 50° shore A -40°C up to 120°C
release
Silicone/PTFE
226-84540-11 Aluminum silver 3.2 mm 45° shore A -60°C up to 200°C
(HT quality)
Aluminum silver Silicone/PTFE,
226-84530-11 3.0 mm 45° shore A Up to 300°C
5mm centre hole ultra-clean
226-84541-11 Magnetic Bimetal Silicone/PTFE 3.0 mm 55° shore A -60°C up to 200°C
Silicone/PTFE,
226-84527-11 - 3.1 mm 45° shore A Up to 250°C
ultra-clean
Silicone/PTFE,
226-84528-11 - 3.0 mm 45° shore A Up to 300°C
ultra-clean
226-84529-11 Aluminum silver - - - -

Pg B-14
