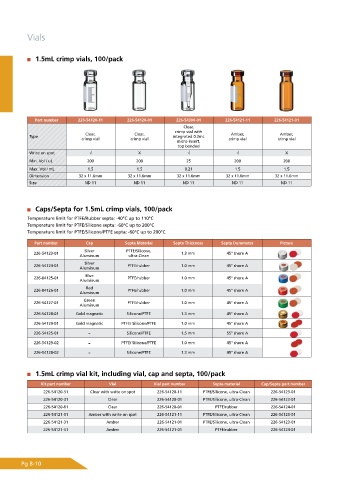

Page 138 - Shimadu Consumables Catalog

Vials

1.5mL crimp vials, 100/pack

Part number 226-54120-11 226-54120-01 226-54306-01 226-54121-11 226-54121-01
Clear,
crimp vial with
Clear, Clear, Amber, Amber,
Type integrated 0.2mL
crimp vial crimp vial crimp vial crimp vial
micro-insert,
top bonded
Write on spot √ X √ √ X
Min. Vol / uL 200 200 25 200 200
Max. Vol / mL 1.5 1.5 0.21 1.5 1.5
Dimension 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm 32 x 11.6mm
Size ND 11 ND 11 ND 11 ND 11 ND 11

Caps/Septa for 1.5mL crimp vials, 100/pack
Temperature limit for PTFE/Rubber septa: -40°C up to 110°C
Temperature limit for PTFE/Silicone septa: -60°C up to 200°C
Temperature limit for PTFE/Silicone/PTFE septa: -60°C up to 200°C

Part number Cap Septa Material Septa Thickness Septa Durometer Picture
Silver PTFE/Silicone,
226-54123-01 1.3 mm 45° shore A
Aluminum ultra-Clean
Silver
226-54124-01 PTFE/rubber 1.0 mm 45° shore A
Aluminum
Blue
226-84125-01 PTFE/rubber 1.0 mm 45° shore A
Aluminum
Red
226-84126-01 PTFE/rubber 1.0 mm 45° shore A
Aluminum
Green
226-54127-01 PTFE/rubber 1.0 mm 45° shore A
Aluminum
226-54128-01 Gold magnetic Silicone/PTFE 1.3 mm 45° shore A
226-54129-01 Gold magnetic PTFE/ Silicone/PTFE 1.0 mm 45° shore A
226-54125-01 - Silicone/PTFE 1.5 mm 55° shore A

226-54129-02 - PTFE/ Silicone/PTFE 1.0 mm 45° shore A
226-54128-02 - Silicone/PTFE 1.3 mm 45° shore A

1.5mL crimp vial kit, including vial, cap and septa, 100/pack

Kit part number Vial Vial part number Septa material Cap/Septa part number
226-54120-51 Clear with write on spot 226-54120-11 PTFE/Silicone, ultra-Clean 226-54123-01
226-54120-31 Clear 226-54120-01 PTFE/Silicone, ultra-Clean 226-54123-01
226-54120-61 Clear 226-54120-01 PTFE/rubber 226-54124-01
226-54121-51 Amber with write on spot 226-54121-11 PTFE/Silicone, ultra-Clean 226-54123-01
226-54121-31 Amber 226-54121-01 PTFE/Silicone, ultra-Clean 226-54123-01
226-54121-41 Amber 226-54121-01 PTFE/rubber 226-54124-01

Pg B-10
