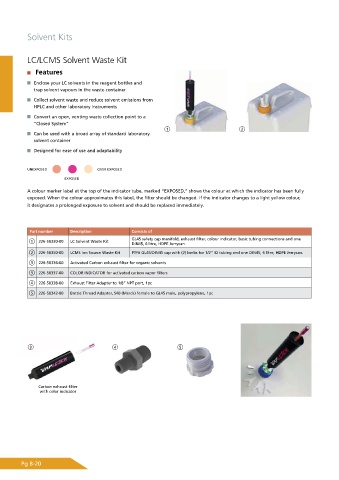

Page 148 - Shimadu Consumables Catalog

Solvent Kits

LC/LCMS Solvent Waste Kit

Features

Enclose your LC solvents in the reagent bottles and
trap solvent vapours in the waste container
Collect solvent waste and reduce solvent emissions from
HPLC and other laboratory instruments
Convert an open, venting waste collection point to a
“Closed System”
1 2
Can be used with a broad array of standard laboratory
solvent container
Designed for ease of use and adaptability

UNEXPOSED OVER EXPOSED
EXPOSED
A colour marker label at the top of the indicator tube, marked “EXPOSED,” shows the colour at which the indicator has been fully
exposed. When the colour approximates this label, the filter should be changed. If the indicator changes to a light yellow colour,
it designates a prolonged exposure to solvent and should be replaced immediately.

Part number Description Consists of
GL45 safety cap manifold, exhaust filter, colour indicator, basic tubing connections and one
1 226-50330-00 LC Solvent Waste Kit
DIN45, 6 litre, HDPE Jerrycan.
2 226-50350-00 LCMS Ion Source Waste Kit PTFE GL45/DIN45 cap with (2) barbs for 1/2” ID tubing and one DIN45, 6 litre, HDPE Jerrycan.
3 226-50336-00 Activated Carbon exhaust filter for organic solvents
3 226-50337-00 COLOR INDICATOR for activated carbon vapor filters

4 226-50338-00 Exhaust Filter Adapter to 1/8” NPT port, 1pc
5 226-50342-00 Bottle Thread Adapter, S40 (Merck) female to GL45 male, polypropylene, 1pc

3 4 5

Carbon exhaust filter
with color indicator
