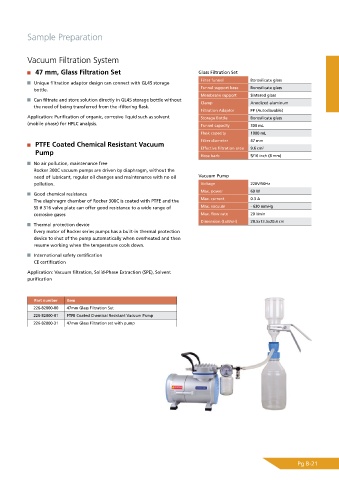

Page 149 - Shimadu Consumables Catalog

Sample Preparation

Vacuum Filtration System

47 mm, Glass Filtration Set Glass Filtration Set
Filter funnel Borosilicate glass
Unique filtration adaptor design can connect with GL45 storage
bottle. Funnel support base Borosilicate glass
Membrane support Sintered glass
Can filtrate and store solution directly in GL45 storage bottle without Clamp Anodized aluminum
the need of being transferred from the -filtering flask.
Filtration Adaptor PP (Autoclavable)
Application: Purification of organic, corrosive liquid such as solvent Storage Bottle Borosilicate glass
(mobile phase) for HPLC analysis. Funnel capacity 300 mL

Flask capacity 1000 mL
Filter diameter 47 mm
PTFE Coated Chemical Resistant Vacuum 2
Pump Effective filtration area 9.6 cm
Hose barb
5/16 inch (8 mm)
No air pollution, maintenance free
Rocker 300C vacuum pumps are driven by diaphragm, without the
need of lubricant, regular oil changes and maintenance with no oil Vacuum Pump
pollution. Voltage 220V/50Hz
Max. power 60 W
Good chemical resistance
Max. current 0.3 A
The diaphragm chamber of Rocker 300C is coated with PTFE and the
SS # 316 valve plate can offer good resistance to a wide range of Max. vacuum - 630 mmHg
corrosive gases Max. flow rate 20 I/min
Dimension (LxWxH) 28.5x13.5x20.4 cm
Thermal protection device
Every motor of Rocker series pumps has a built-in thermal protection
device to shut of the pump automatically when overheated and then
resume working when the temperature cools down.
International safety certification
CE certification
Application: Vacuum filtration, Solid-Phase Extraction (SPE), Solvent
purification

Part number Item
226-82000-00 47mm Glass Filtration Set
226-82000-01 PTFE Coated Chemical Resistant Vacuum Pump
226-82000-31 47mm Glass Filtration set with pump

Pg B-21
