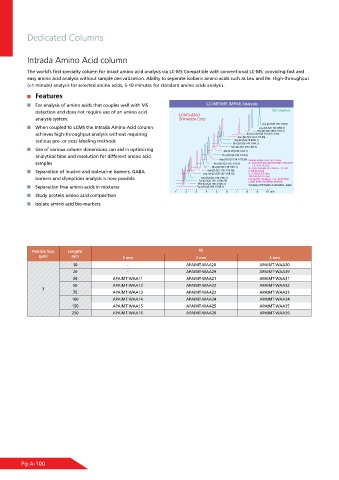

Page 104 - Shimadu Consumables Catalog

Dedicated Columns

Intrada Amino Acid column

The world’s first specialty column for intact amino acid analysis via LC-MS Compatible with conventional LC-MS, providing fast and
easy amino acid analysis without sample derivatization. Ability to separate isobaric amino acids such as Leu and Ile. High-throughput
(<1 minute) analysis for selected amino acids, 5-10 minutes for standard amino acids analysis.
Features
For analysis of amino acids that couples well with MS
detection and does not require use of an amino acid
analysis system:
When coupled to LCMS the Intrada Amino Acid column
achieves high-throughput analysis without requiring
tedious pre- or post-labeling methods
Use of various column dimensions can aid in optimizing
analytical time and resolution for different amino acid
samples
Separation of leucine and isoleucine isomers, GABA
isomers and dipeptides analysis is now possible
Separation free amino acids in mixtures
Study protein amino acid composition
Isolate amino acid bio-markers

Particle Size Length/ ID
(μm) mm 1 mm 2 mm 3 mm
10 - APAIMT-WAA20 APAIMT-WAA30
20 - APAIMT-WAA29 APAIMT-WAA39
30 APAIMT-WAA11 APAIMT-WAA21 APAIMT-WAA31
50 APAIMT-WAA12 APAIMT-WAA22 APAIMT-WAA32
3
75 APAIMT-WAA13 APAIMT-WAA23 APAIMT-WAA33
100 APAIMT-WAA14 APAIMT-WAA24 APAIMT-WAA34
150 APAIMT-WAA15 APAIMT-WAA25 APAIMT-WAA35
250 APAIMT-WAA16 APAIMT-WAA26 APAIMT-WAA36

Pg A-100
