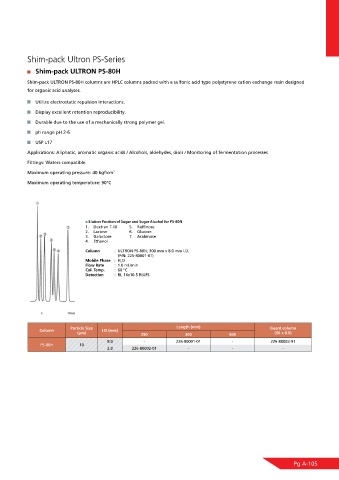

Shim-pack Ultron PS-Series

Shim-pack ULTRON PS-80H
Shim-pack ULTRON PS-80H columns are HPLC columns packed with a sulfonic acid type polystyrene cation exchange resin designed
for organic acid analyses.

Utilize electrostatic repulsion interactions.
Display excellent retention reproducibility.
Durable due to the use of a mechanically strong polymer gel.
ph range pH 2-6

USP L17
Applications: Aliphatic, aromatic organic acids / Alcohols, aldehydes, diols / Monitoring of fermentation processes
Fittings: Waters compatible
Maximum operating pressure: 40 kgf/cm 2

Maximum operating temperature: 90°C

Elution Position of Sugar and Sugar Alcohol for PS-80N
1. Dextran T-10 5. Raffinose
2. Lactose 6. Glucose
3. Galactose 7. Arabinose
4. Ethanol
Column : ULTRON PS-80N, 300 mm x 8.0 mm I.D.
(P/N: 226-80001-01)
Mobile Phase : H O
2
Flow Rate : 1.0 mL/min
Col. Temp. : 60 °C
Detection : RI, 16x10-5 RIUFS

Particle Size Length (mm) Guard column
Column I.D (mm)
(μm) 250 300 500 (50 x 8.0)
8.0 - 226-80001-01 - 226-80003-91
PS-80H 10
2.0 226-80002-01 - - -

Pg A-105
