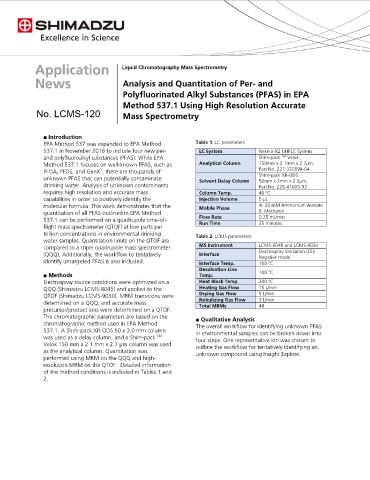

No. SSI-LCMS-120






                                         Liquid Chromatography Mass Spectrometry

                                          Mass Spectrometry
                                          Analysis and Quantitation of Per- and

                                           Polyfluorinated Alkyl Substances (PFAS) in EPA

             No. LCMS-120                  Method 537.1 Using High Resolution Accurate



               ■ Introduction
               EPA Method 537 was expanded to EPA Method          Table 1: LC parameters

               537.1 in November 2018 to include four new per-     LC System           Nexera-X2 UHPLC System
               and polyfluoroalkyl substances (PFAS). While EPA                        Shim-pack   Velox ,
                                                                                              TM
               Method 537.1 focuses on well-known PFAS, such as    Analytical Column   150mm x 2.1mm x 2.7µm,
               PFOA, PFOS, and GenX , there are thousands of                           Part No. 227-320094-04
                                  1
               unknown PFAS that can potentially contaminate       Solvent Delay Column   Shim-pack XR-ODS
                                                                                       50mm x 2mm x 2.2µm,
               drinking water. Analysis of unknown contaminants                        Part No. 228-41605-93
               requires high resolution and accurate mass          Column Temp.        40  C
                                                                                         o
               capabilities in order to positively identify the    Injection Volume    5 µL
               molecular formula. This work demonstrates that the   Mobile Phase       A: 20 mM Ammonium Acetate
               quantitation of all PFAS outlined in EPA Method                         B: Methanol
               537.1 can be performed on a quadrupole time-of-     Flow Rate           0.25 mL/min
               flight mass spectrometer (QTOF) at low parts per      Run Time          35 minutes
               trillion concentrations in environmental drinking   Table 2: LCMS parameters
               water samples. Quantitation limits on the QTOF are
               compared to a triple quadrupole mass spectrometer   MS Instrument       LCMS-8045 and LCMS-9030
               (QQQ). Additionally, the workflow to tentatively    Interface           Electrospray Ionization (ESI)
                                                                                       Negative mode
               identify untargeted PFAS is also included.          Interface Temp.     100  C
                                                                                          o
                                                                   Desolvation Line       o
               ■ Methods                                           Temp.               100  C
                                                                                          o
               Electrospray source conditions were optimized on a   Heat Block Temp.   200  C
               QQQ (Shimadzu LCMS-8045) and applied to the         Heating Gas Flow    15 L/min
               QTOF (Shimadzu LCMS-9030). MRM transitions were     Drying Gas Flow     5 L/min
               determined on a QQQ, and accurate mass              Nebulizing Gas Flow   3 L/min
                                                                   Total MRMs
                                                                                       48
               precursor/product ions were determined on a QTOF.
               The chromatographic parameters are based on the    ■ Qualitative Analysis
               chromatographic method used in EPA Method          The overall workflow for identifying unknown PFAS
               537.1. A Shim-pack XR-ODS 50 x 3.0 mm column       in environmental samples can be broken down into
               was used as a delay column, and a Shim-pack        four steps. One representative ion was chosen to
                                                     TM
               Velox 150 mm x 2.1 mm x 2.7 µm column was used     outline the workflow for tentatively identifying an
               as the analytical column. Quantitation was         unknown compound using Insight Explore.
               performed using MRM on the QQQ and high-
               resolution MRM on the QTOF.  Detailed information
               of the method conditions is included in Tables 1 and
               2.
