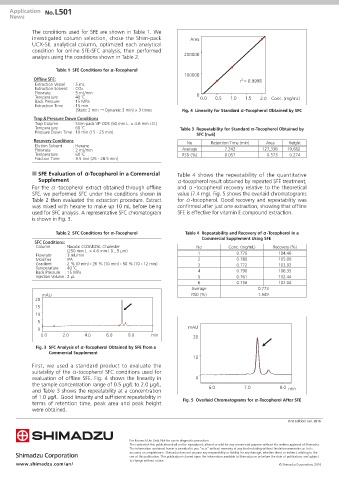

Application  No.L501
    News

            The conditions used for SFE are shown in Table 1. We
            investigated column selection, chose the Shim-pack      Area
            UCX-SIL analytical column, optimized each analytical
            condition for online SFE-SFC analysis, then performed
            analysis using the conditions shown in Table 2.       200000

                     Table 1  SFE Conditions for α-Tocopherol
                                                                  100000
             Offline SFE:                                                            r = 0.9998
                                                                                      2
              Extraction Vessel   : 5 mL
              Extraction Solvent   : CO2
              Flowrate     : 5 mL/min                                 0
              Temperature   : 40 ˚C                                    0.0   0.5  1.0  1.5  2.0  Conc. (mg/mL)
              Back Pressure   : 15 MPa
              Extraction Time   : 15 min
                         (Static 2 min → Dynamic 3 min) × 3 times  Fig. 4  Linearity for Standard α-Tocopherol Obtained by SFC
             Trap & Pressure Down Conditions
              Trap Column   : Shim-pack VP-ODS (50 mm L. × 4.6 mm I.D.)
              Temperature   : 60 ˚C                             Table 3  Repeatability for Standard α-Tocopherol Obtained by
              Pressure Down Time : 10 min (15 - 25 min)
                                                                      SFC (n=6)
             Recovery Conditions                                   No      Retention Time (min)  Area  Height
              Elution Solvent   : Hexane
              Flowrate     : 2 mL/min                            Average        7.242        127,338  19,682
              Temperature   : 60 ˚C                              RSD (%)        0.057          0.573   0.274
              Fraction Time   : 3.5 min (25 - 28.5 min)
            n SFE Evaluation of α-Tocopherol in a Commercial   Table 4 shows  the repeatability of the quantitative
              Supplement                                       α-tocopherol result obtained by repeated SFE treatment,
            For the α -tocopherol extract obtained through offline   and α -tocopherol recovery relative to the theoretical
            SFE, we performed SFC under the conditions shown in   value (7.4 mg). Fig. 5 shows the overlaid chromatograms
            Table 2 then evaluated the extraction procedure. Extract   for α-tocopherol. Good recovery and repeatability was
            was mixed with hexane to make up 10 mL before being   confirmed after just one extraction, showing that offline
            used for SFC analysis. A representative SFC chromatogram   SFE is effective for vitamin E compound extraction.
            is shown in Fig. 3.

                     Table 2  SFC Conditions for α-Tocopherol     Table 4  Repeatability and Recovery of α-Tocopherol in a
                                                                        Commercial Supplement Using SFE
             SFC Conditions:
              Column      : Nacalai COSMOSIL Cholester                No         Conc. (mg/mL)   Recovery (%)
                                   (250 mm L. × 4.6 mm I.D., 5 µm)
              Flowrate   : 3 mL/min                                    1            0.776          104.46
              Modifier   : IPA                                         2            0.780          105.00
              Gradient      : 2 % (0 min) - 20 % (10 min) - 50 % (10 - 12 min)  3   0.772          103.92
              Temperature   : 40 ˚C
              Back Pressure  : 15 MPa                                  4            0.790          106.35
              Injection Volume : 2 µL                                  5            0.761          102.44
                                                                       6            0.758          102.04
                                                                    Average                 0.773
                mAU                                                 RSD (%)                 1.549
             20
             15
             10
              5
              0                                                    mAU
               0.0     2.0     4.0    6.0     8.0     min            20

              Fig. 3  SFC Analysis of α-Tocopherol Obtained by SFE from a
                  Commercial Supplement
                                                                     10
            First, we used a standard product to evaluate the
            suitability of the α-tocopherol SFC conditions used for
            evaluation of offline SFE. Fig. 4 shows the linearity in   0
            the sample concentration range of 0.5 µg/L to 2.0 µg/L,
            and Table 3 shows the repeatability at a concentration        6.0          7.0         8.0  min
            of 1.0 µg/L. Good linearity and sufficient repeatability in
            terms of retention time, peak area and peak height   Fig. 5  Overlaid Chromatograms for α-Tocopherol After SFE
            were obtained.

                                                                                                      First Edition: Jan. 2016
