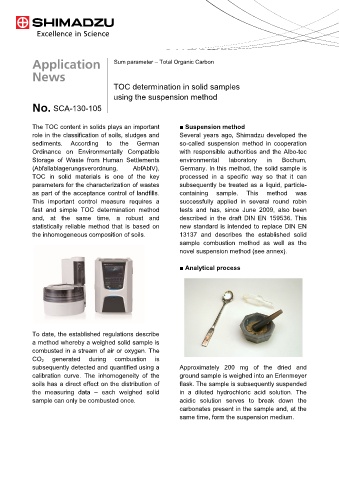

Page 11 - 1_Environmental analysis
P. 11

Sum parameter – Total Organic Carbon


                                         TOC determination in solid samples


                                         using the suspension method
                    SCA-130-105


            The TOC content in solids plays an important        ■ Suspension method
            role in the classification of soils, sludges and    Several years ago, Shimadzu developed the
            sediments.    According   to   the   German         so-called suspension method in  cooperation
            Ordinance  on  Environmentally  Compatible          with responsible authorities and the Albo-tec
            Storage of Waste from Human Settlements             environmental    laboratory    in   Bochum,
            (Abfallablagerungsverordnung,       AbfAblV),       Germany. In this method, the solid sample is
            TOC  in  solid  materials  is  one  of  the  key    processed  in a specific way so that it can
            parameters for the characterization of wastes       subsequently be treated as a liquid, particle-
            as part of the acceptance control of landfills.     containing   sample.    This   method    was
            This  important  control  measure  requires  a      successfully  applied  in  several  round  robin
            fast and simple TOC  determination method           tests  and  has,  since  June  2009,  also  been
            and, at the same time, a robust and                 described in the draft DIN EN 159536. This
            statistically  reliable  method  that  is  based  on   new standard is intended to replace DIN EN
            the inhomogeneous composition of soils.             13137 and describes  the established solid
                                                                sample  combustion  method  as  well  as  the
                                                                novel suspension method (see annex).

                                                                ■ Analytical process












            To date, the established regulations describe
            a method whereby a weighed solid sample is
            combusted in a stream of air or oxygen. The
                   generated    during   combustion    is
            CO 2
            subsequently detected and quantified using a        Approximately 200 mg of the dried and
            calibration  curve. The inhomogeneity of the        ground sample is weighed into an Erlenmeyer
            soils has a direct effect on the distribution of    flask. The sample is subsequently suspended
            the measuring data –  each weighed solid            in  a  diluted  hydrochloric  acid  solution.  The
            sample can only be combusted once.                  acidic solution serves to break down the
                                                                carbonates present in the sample and, at the
                                                                same time, form the suspension medium.
