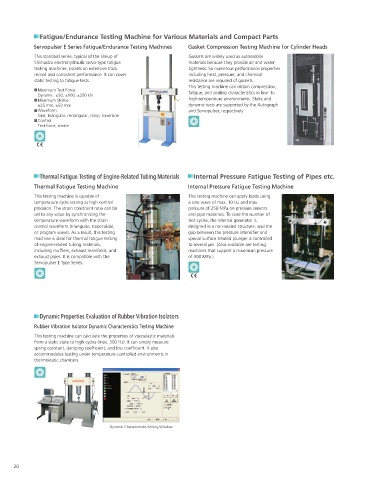

Page 20 - Automobile Evaluation Instruments

Fatigue/Endurance Testing Machine for Various Materials and Compact Parts Various Test Jigs

Servopulser E Series Fatigue/Endurance Testing Machines Gasket Compression Testing Machine for Cylinder Heads 45° Peel Test Jig for Printed Circuit Boards Shearing Test Jig for Electronic Components
This standard series, typical of the lineup of Gaskets are widely used as automobile This test jig is for peel testing of electric and This test jig is for shearing testing of electric and
Shimadzu electrohydraulic servo-type fatigue materials because they provide air and water electronic components on printed circuit boards. electronic components mounted on printed
testing machines, boasts an extensive track tightness. So numerous performance properties It also supports test methods for lead-free circuit boards. The position of the specimen is
record and consistent performance. It can cover including heat, pressure, and chemical solders (JIS Z3198-6). determined by the X-Y stage.
static testing to fatigue tests. resistance are required of gaskets.
This testing machine can obtain compression,
Maximum Test Force: fatigue, and sealing characteristics in low- to
Dynamic ±50, ±100, ±200 kN
Maximum Stroke: high-temperature environments. Static and
±25 mm, ±50 mm dynamic tests are supported by the Autograph
Waveform: and Servopulser, respectively. Three-/Four-Point Bending Test Jigs Cyclic Bending Test Jig for Printed Circuit Boards
Sine, triangular, rectangular, ramp, haversine
Control: for Printed Circuit Boards
Test force, stroke This test jig is for cyclic bending tests of
Bending test jigs for printed circuit boards printed circuit boards. Properties such as
and printed circuit boards mounted with resistance fluctuations due to the
components. application of cycle loads can be observed.

Strength Test Jig for Surface Mounted Components
Thermal Fatigue Testing of Engine-Related Tubing Materials Internal Pressure Fatigue Testing of Pipes etc. This jig is for body strength bending tests of Punch
Thermal Fatigue Testing Machine Internal Pressure Fatigue Testing Machine surface-mounted components based on JEITA Specimen
(Japan Electronics and Information Technology
This testing machine is capable of This testing machine can apply loads using Industries Association).
temperature cycle testing at high control a sine wave of max. 10 Hz and max.
precision. The strain constraint ratio can be pressure of 250 MPa on pressure sensors
set to any value by synchronizing the and pipe materials. To raise the number of
temperature waveform with the strain test cycles, the internal generator is
control waveform (triangular, trapezoidal, designed in a non-sealed structure, and the
or program wave). As a result, this testing gap between the pressure intensifier and Fatigue/Endurance Testing of Compact Electronic Components
machine is ideal for thermal fatigue testing special surface treated plunger is controlled
of engine-related tubing materials, to several µm. (Also available are testing MMT Series Electromagnetic Force Air-Servo ADT-A Series Pneumatic Fatigue/
including mufflers, exhaust manifolds, and machines that support a maximum pressure Micro Material Testing Machines Endurance Testing Machines
exhaust pipes. It is compatible with the of 300 MPa.)
Servopulser E Type Series. This series of testing machines adopts This series of fatigue/endurance
an electromagnetic servo actuator to testing machines adopts a
enable fatigue testing of compact parts servo-controlled system that
in the micro test force range. 10 N, 100 operates by air, not oil. It is ideal for
N, and 250 N models are available. evaluating new materials and
electronic instrumentation parts
such as printed circuit boards and
connectors. It comes in four models,
±1, ±2, ±5, and ±10 kN.
Dynamic Properties Evaluation of Rubber Vibration Isolators
Rubber Vibration Isolator Dynamic Characteristics Testing Machine Environmental Resistance Evaluation of Electronic Instrumentation Components

This testing machine can calculate the properties of viscoelastic materials WET-SPM Series Environment Controlled Scanning Probe Microscopes
from a static state to high cycles (max. 300 Hz). It can simply measure
spring constant, damping coefficient, and loss coefficient. It also This series of microscopes can observe changes in the surface shape of
accommodates testing under temperature-controlled environments in specimens at a high magnification of several tens of thousands while
thermostatic chambers. controlling temperature and humidity. This makes it ideal for analyzing
electronic instrumentation parts and various other parts for automobiles
under various environmental conditions.

Evaluation of Voids in Solder

inspeXio SMX-225CT Microfocus X-Ray CT System
Quality can be controlled by inspecting the electronic printed circuit boards
used inside automobiles or in the harsh environment of the engine
Dynamic Characteristics Setting Window compartment. In particular, discovery of the amount of solder under Air
mounted components and air bubbles in the solder can help minimize Bubbles
defects such as cracking due to heat and vibration. Fluoroscopic Image of Solder CT Image of Solder on Printed CT Image of Solder Deficiency
Sections Circuit Board and Air Bubbles in Solder
Engines, Motors, and Bodies and Interiors Lithium-Ion Rechargeable
Power Sources Batteries and Fuel Cells
