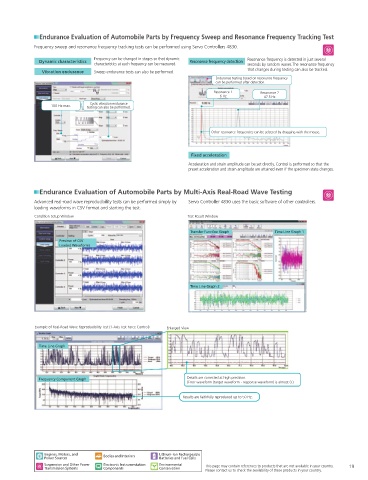

Cyclic Endurance Testing of Automobile Parts Endurance Evaluation of Automobile Parts by Frequency Sweep and Resonance Frequency Tracking Test

Shimadzu JF Series Force Simulators / Compact Hydraulic Actuators Frequency sweep and resonance frequency tracking tests can be performed using Servo Controllers 4830.
This series can evaluate the endurance of automobile parts and other Dynamic characteristics Frequency can be changed in stages so that dynamic Resonance frequency detection Resonance frequency is detected in just several
products by actually applying a cyclic load. characteristics at each frequency can be measured. seconds by random waves.The resonance frequency
Vibration endurance Sweep endurance tests can also be performed. that changes during testing can also be tracked.
Actuator Size and Weight
Model Stroke ±25mm ±50mm ±100mm ±150mm Lightweight Endurance testing based on resonance frequency
can be performed after detection.
Weight * 1 15kg 17kg 20kg 26kg
JF5kN The actuator (20 kN ±100 mm) weighs only 25 kg (40 % less than previous Shimadzu
Overall Length * 2 440mm 565mm 815mm 1065mm models), which means less influence of the actuator deadweight on the specimen when a Resonance 1 Resonance 2
JF10kN Weight * 1 19kg 21kg 25kg 28kg dynamic load is applied. 6 Hz 47.5 Hz
JF20kN Overall Length * 2 445mm 570mm 820mm 1070mm Compact 100 Hz max. Cyclic vibration endurance
The actuator is compact and takes up less space when installed on the specimen.
Weight * 1 36kg 40kg 47kg 54kg Easy Operation testing can also be performed.
JF30kN
Overall Length * 2 590mm 715mm 965mm 1215mm It is compact and lightweight, which makes it easy to carry and install. One-touch couplers
are used so connections to the hydraulic system are easy to perform.
*1 The weight includes the load cell and servo valve. Diverse Testing System
*2 The overall length is the dimension at the central position, with the load cell attached. A portable hydraulic unit, Servo Controller 4830, and test jigs can be combined on the
actuator to configure the required system. Other resonance frequencies can be selected by dragging with the mouse.
Fixed acceleration
Acceleration and strain amplitude can be set directly. Control is performed so that the
Endurance Testing of Engine Mounts preset acceleration and strain amplitude are attained even if the specimen state changes.
Z-axis
Multi-Axis Endurance Testing System for Automobile Parts
Endurance Evaluation of Automobile Parts by Multi-Axis Real-Road Wave Testing
With Servo Controllers 4830 connected, this small-capacity, compact multi-axis endurance
testing system can measure specimens while synchronously controlling up to four force Advanced real-road wave reproducibility tests can be performed simply by Servo Controller 4830 uses the basic software of other controllers.
simulators. The phases of the force simulators can also be set as desired. loading waveforms in CSV format and starting the test.
Force simulators
X-axis Y-axis Condition Setup Window Test Result Window
For X-axis
Engine mount Transfer Function Graph Time Line Graph 1
USB 6-DOF load cell
USB Preview of CSV
USB For Y-axis
Loaded Waveforms
PC + multiaxial Servo Controllers
testing software 4830
For Z-axis Hydraulic power supply unit
Connection Example for Three Force Simulators

Time Line Graph 2

Servo Controller 4830
The precision of endurance and dynamic Example of Real-Road Wave Reproducibility Test (1-Axis Test Force Control) Enlarged View
strength evaluation can be dramatically
improved from raw materials to actual products.
It can also be connected to control various Time Line Graph
Shimadzu fatigue/endurance testing machines
as well as those made by other manufacturers.

Frequency Component Graph Details are corrected at high precision.
(Error waveform (target waveform - response waveform) is almost 0.)

Results are faithfully reproduced up to 50 Hz.
Testing
Machines
Made by
Other
Manufacturers

300 Hz High-Cycle Fatigue and T Series Torsional Fatigue Force Simulator Servopulser Multiaxial Servopulser
Endurance Testing Machine Testing Machines U Type Series Testing System E Type Series
Engines, Motors, and Bodies and Interiors Lithium-Ion Rechargeable
Power Sources Batteries and Fuel Cells
18 Suspension and Other Power Electronic Instrumentation Environmental This page may contain references to products that are not available in your country. 19
Conservation
Transmission Systems
Components
Please contact us to check the availability of these products in your country.
