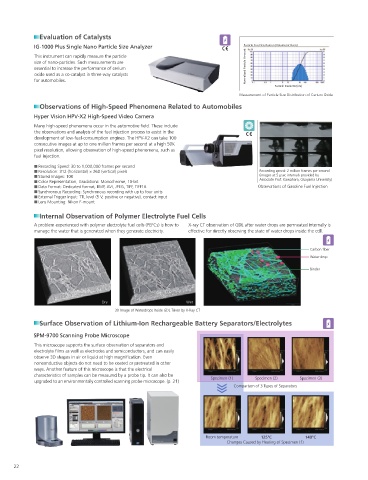

Page 22 - Automobile Evaluation Instruments

Evaluation of Catalysts Actual Battery Tests (Nail Penetration/Crush) and Fatigue Testing of

IG-1000 Plus Single Nano Particle Size Analyzer Particle Size Distribution (Volumetric Basis) Various Actual Parts and Materials for Automobiles
This instrument can rapidly measure the particle Servopulser EHF-UM/UV Series/Servopulser EMT Series
size of nano-particles. Such measurements are
essential to increase the performance of cerium Normalized Particle Amount These testing machines evaluate the durability of the component members
oxide used as a co-catalyst in three-way catalysts of batteries and finished battery products against repeated stress, and can
for automobiles. apply accurate loads (e.g. test force, displacement) at high speed. They also
Particle Diameter(nm) support nail penetration testing and crush testing. Moreover, they are
compatible with constant-temperature environments. The hydraulic model
Measurement of Particle Size Distribution of Cerium Oxide
(EHF-U series) is ideal for large-capacity specimens, whereas the easy-to-install
Observations of High-Speed Phenomena Related to Automobiles electromagnetic model (EMT series) is ideal for small-capacity specimens.
EHF-UM/UV Series EMT Series
Hyper Vision HPV-X2 High-Speed Video Camera
Many high-speed phenomena occur in the automotive field. These include
the observations and analysis of the fuel injection process to assist in the
development of low-fuel-consumption engines. The HPV-X2 can take 100 Compression Evaluation of Lithium-Ion Rechargeable Batteries and Fuel Cells
consecutive images at up to one million frames per second at a high 50K
pixel resolution, allowing observation of high-speed phenomena, such as Battery Compression Evaluation Instrument
fuel injection.
Testing on this instrument differs from compression failure evaluation in improved parallel structure for thin films, and electrical resistance is
Recording Speed: 30 to 1,000,000 frames per second that changes in battery characteristics and generating efficiency, etc. in the reduced by vapor-deposited gold faces. Current and voltage generated
Resolution: 312 (horizontal) × 260 (vertical) pixels Recording speed: 2 million frames per second compression process are measured. The compression plate has an when a specimen is compressed are measured.
Stored Images: 100 (images at 5 µsec intervals provided by
Associate Prof. Kawahara, Okayama University)
Color Representation, Gradations: Monochrome, 10-bit Crosshead
Data Format: Dedicated format, BMP, AVI, JPEG, TIFF, TIFF16 Observations of Gasoline Fuel Injection
Synchronous Recording: Synchronous recording with up to four units Compression load jig
External Trigger Input: TTL level (5 V, positive or negative), contact input Insulation Upper spherical seat type
Lens Mounting: Nikon F-mount compression plate
Magnet scale contact face
Internal Observation of Polymer Electrolyte Fuel Cells PC Vapor-deposited
gold faces
A problem experienced with polymer electrolyte fuel cells (PEFCs) is how to X-ray CT observation of GDL after water drops are permeated internally is
manage the water that is generated when they generate electricity. effective for directly observing the state of water drops inside the cell. Magnet scale
Compression
plate
Carbon fiber Resistance tester Table
Water drop

Binder
X-Ray Non-Destructive Inspection and Analysis of Battery Modules,
On-Board Electronic Components, and Die Cast Parts

Enlarged View Cross-section by line
inspeXio SMX-225CT FPD Microfocus X-Ray CT System - Cross-Section Image in image (1).
Dry Wet
X-ray CT systems for industry can observe the
3D Image of Waterdrops Inside GDL Taken by X-Ray CT internal structure of target objects
non-destructively. As a result, they are very
Surface Observation of Lithium-Ion Rechargeable Battery Separators/Electrolytes useful for accurately ascertaining the inside of
particularly complex electrical machinery and
SPM-9700 Scanning Probe Microscope electronic products.
This microscope supports the surface observation of separators and Separator
electrolyte films as well as electrodes and semiconductors, and can easily
observe 3D shapes in air or liquid at high magnification. Even
nonconductive objects do not need to be coated or pretreated in other Cathode
ways. Another feature of this microscope is that the electrical Anode
characteristics of samples can be measured by a probe tip. It can also be Specimen (1) Specimen (2) Specimen (3)
upgraded to an environmentally controlled scanning probe microscope. (p. 21) Cross section by line in image (1)Cross section by line in image (2)
Comparison of 3 Types of Separators
Internal Observation of Lithium-Ion Rechargeable Battery by X-Rays
Data Obtained by Visualizing Visual Data Obtained by 18650-Type Lithium-Ion 18650-Type Lithium-Ion
(Color-Coding) Voids in Overlapping New and Battery - Deteriorated Battery Battery - Deteriorated Battery
Frequently Charged/Discharged Used Products and Measuring CT Image VR Image
Used Products Respective Differences

Room temperature 125°C 140°C
Changes Caused by Heating of Specimen (1)
Engines, Motors, and Bodies and Interiors Lithium-Ion Rechargeable
Power Sources Batteries and Fuel Cells
22 Suspension and Other Power Electronic Instrumentation Environmental This page may contain references to products that are not available in your country. 23
Components
Transmission Systems
Conservation
Please contact us to check the availability of these products in your country.
