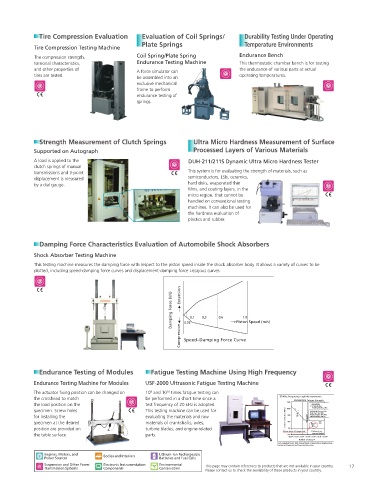

Page 17 - Automobile Evaluation Instruments

Official Certification of Internal Sensors Vibration Testing of Various On-Board Tire Compression Evaluation Evaluation of Coil Springs/ Durability Testing Under Operating
in Crash Test Dummies Component Parts Tire Compression Testing Machine Plate Springs Temperature Environments
Autograph can be used for official certification of the internal sensors in EHV Series The compression strength, Coil Spring/Plate Spring Endurance Bench
crash test dummies. It confirms that force, displacement, and angle sensors torsional characteristics, Endurance Testing Machine This thermostatic chamber bench is for testing
measure accurately. This series can perform the vibration testing of on-board components, for
example, and simulations based on real-road waves. This system features a and other properties of A force simulator can the endurance of various parts at actual
maximum test force of 500 kN, maximum size table of 3 m × 3 m, and tires are tested. be assembled into an operating temperatures.
long excitation stroke, thus supporting testing of large-size specimens. In exclusive mechanical
addition to sine waves, testing by seismic waves and random waves is frame to perform
possible. endurance testing of
springs.

Strength Measurement of Clutch Springs Ultra Micro Hardness Measurement of Surface
Supported on Autograph Processed Layers of Various Materials
A load is applied to the DUH-211/211S Dynamic Ultra Micro Hardness Tester
clutch springs of manual
transmissions and 3-point This system is for evaluating the strength of materials, such as
displacement is measured semiconductors, LSIs, ceramics,
by a dial gauge. hard disks, evaporated thin
films, and coating layers, in the
micro region, that cannot be
Measurement of Automobile Interior VOCs handled on conventional testing
machines. It can also be used for
Prominence Series High-Performance Liquid Chromatograph Aldehyde Analysis Systems
the hardness evaluation of
These systems analyze aldehydes, such as formaldehyde, that are generated from seats and other interior materials. Aldehydes are analyzed after 2,3-DNPH plastics and rubber.
derivatization.

Peak Components
1. Formaldehyde Damping Force Characteristics Evaluation of Automobile Shock Absorbers
2. Acetaldehyde
3. Acetone
4. Acrolein Shock Absorber Testing Machine
5. Propionaldehyde
6. Crotonaldehyde This testing machine measures the damping force with respect to the piston speed inside the shock absorber body. It allows a variety of curves to be
7. 2-Butanone
8. Methacrolein plotted, including speed-damping force curves and displacement-damping force Lissajous curves.
9. n-Butylaldehyde
10. Benzaldehyde
11. Valeraldehyde
12. m-Tolualdehyde
13. Hexaldehyde
Damping Force (kN) 0.05 0.1 0.3 0.6 Piston Speed (m/s)
0 5 10 (min.) Extension
Chromatogram of 13 Standard Aldehydes
1.0
Compression

Torsion Endurance Testing of Drive Shafts, Ball Joints, and Clutches Speed–Damping Force Curve
Torsional Fatigue Testing Machine Torsional Testing Machine for Large Specimens
This machine measures torsional dynamic characteristics (dynamic spring Torsional endurance tests matched to various capacities can be performed
constant, damping coefficient, loss coefficient) and tests fatigue. by combining with a speed reducer.
Endurance Testing of Modules Fatigue Testing Machine Using High Frequency
Endurance Testing Machine for Modules USF-2000 Ultrasonic Fatigue Testing Machine
The actuator fixing position can be changed on 10 and 10 times fatigue testing can
9
10
the crosshead to match be performed in a short time since a 20 kHz frequency exploits resonance
SNCM439(B) Fatigue Strength
the load position on the test frequency of 20 kHz is adopted. 1100 C. Masuda et al.
SNCM439(B)
Rotating bending, 50Hz
specimen. Screw holes This testing machine can be used for 1000 SNCM439(B) Characteristics
Yield stress: 1444 MPa
for installing the evaluating the materials and raw Stress amplitude, S (MPa) 900 f f f Tensile strength: 1870 MPa
Vickers hardness: 592 Hv
specimen at the desired materials of crankshafts, axles, 800 f f f f
position are provided on turbine blades, and engine-related 700
Failure below 10 7 fatigue limit f: failure from
f: failure from
the table surface. parts. 600 internal defect
internal defect
1.0x10 4 1.0x10 5 1.0x10 6 1.0x10 7 1.0x10 8 1.0x10 9 1.0x10 10
Number of cycles, N
Data supplied by Dr. Ishii, Department of Mechanical Engineering,
Faculty of Engineering, Shizuoka University
Engines, Motors, and Bodies and Interiors Lithium-Ion Rechargeable
Power Sources Batteries and Fuel Cells
16 Suspension and Other Power Electronic Instrumentation Environmental This page may contain references to products that are not available in your country. 17
Conservation
Transmission Systems
Components
Please contact us to check the availability of these products in your country.
