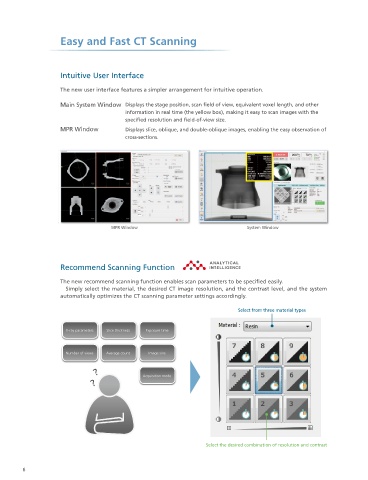

Easy and Fast CT Scanning

Intuitive User Interface

The new user interface features a simpler arrangement for intuitive operation.

Main System Window Displays the stage position, scan eld of view, equivalent voxel length, and other
information in real time (the yellow box), making it easy to scan images with the
speci ed resolution and eld-of-view size.
MPR Window Displays slice, oblique, and double-oblique images, enabling the easy observation of
cross-sections.

MPR Window System Window

Recommend Scanning Function

The new recommend scanning function enables scan parameters to be speci ed easily.
Simply select the material, the desired CT image resolution, and the contrast level, and the system
automatically optimizes the CT scanning parameter settings accordingly.

Select from three material types

X-ray parameters Slice thickness Exposure time

Number of views Average count Image size

Acquisition mode

Select the desired combination of resolution and contrast
