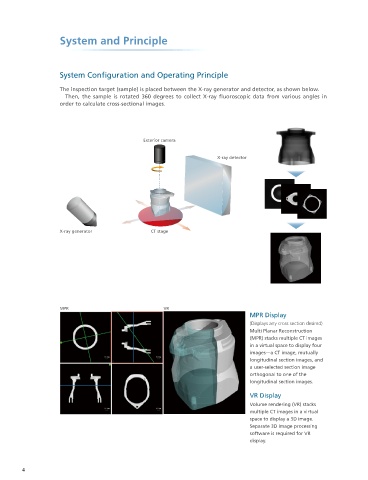

System and Principle

System Con guration and Operating Principle

The inspection target (sample) is placed between the X-ray generator and detector, as shown below.
Then, the sample is rotated 360 degrees to collect X-ray uoroscopic data from various angles in
order to calculate cross-sectional images.

Exterior camera

X-ray detector

X-ray generator CT stage

MPR VR
MPR Display
(Displays any cross section desired)
Multi Planar Reconstruction
(MPR) stacks multiple CT images
in a virtual space to display four
images—a CT image, mutually
longitudinal section images, and
a user-selected section image
orthogonal to one of the
longitudinal section images.

VR Display
Volume rendering (VR) stacks
multiple CT images in a virtual
space to display a 3D image.
Separate 3D image processing
software is required for VR
display.
