P. 21

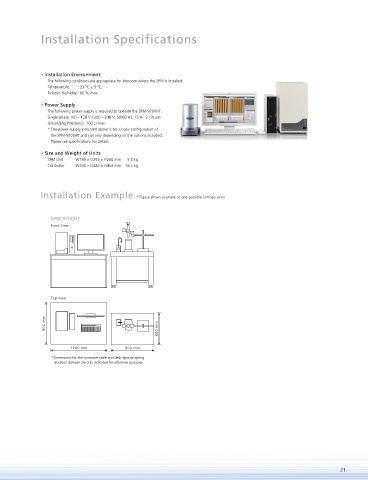

Installation Specifications
• Installation Environment
The following conditions are appropriate for theroom where the SPM is installed.
Temperature : 23 °C ± 5 °C
Relative Humidity : 60 % max.
• Power Supply
The following power supply is required to operate the SPM-9700HT.
Single-phase 100 – 120 V / 200 – 240 V, 50/60 Hz, 15 A - 2 circuits
Grounding Resistance: 100 max.
* The power supply indicated above is for a basic con guration of
the SPM-9700HT and can vary depending on the options included.
Please see speci cations for details.
• Size and Weight of Units
SPM Unit W180 × D255 × H260 mm 5.5 kg
Controller W250 × D420 × H454 mm 18.5 kg
Installation Example * Figure shows example of one possible configuration.
SPM-9700HT
Front View
Top View
800 mm 600 mm
1200 mm 800 mm
* Dimensions for the computer table and desk-type air-spring
vibration damper are only indicated for reference purposes.
