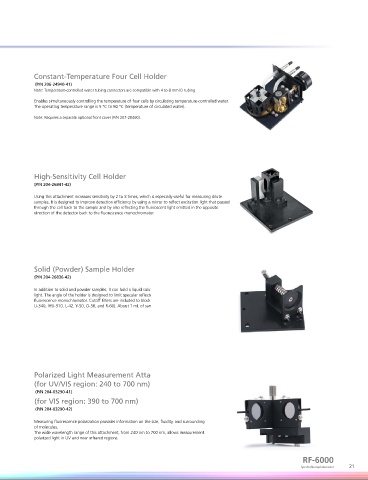

Page 21 - Shimadzu RF-6000

Constant-Temperature Four Cell Holder
(P/N 206-24940-41)
Note: Temperature-controlled water tubing connectors are compatible with 4 to 8 mm ID tubing.
Enables simultaneously controlling the temperature of four cells by circulating temperature-controlled water.
The operating temperature range is 5 °C to 80 °C (temperature of circulated water).
Note: Requires a separate optional front cover (P/N 207-20490).

High-Sensitivity Cell Holder
(P/N 204-26841-42)
Using this attachment increases sensitivity by 2 to 3 times, which is especially useful for measuring dilute
samples. It is designed to improve detection efficiency by using a mirror to reflect excitation light that passed
through the cell back to the sample and by also reflecting the fluorescent light emitted in the opposite
direction of the detector back to the fluorescence monochromator.

Solid (Powder) Sample Holder
(P/N 204-26836-42)
In addition to solid and powder samples, it can hold a liquid solution cell to measure the reflected fluorescent
light. The angle of the holder is designed to limit specular reflected excitation light from directly entering the
fluorescence monochromator. Cutoff filters are included to block excitation light and scattered light (includes
U-340, IHU-310, L-42, Y-50, O-56, and R-60). About 1 mL of sample is required for the powder holder.
Sample size range
• Between 5 mm and 140 mm wide
• Between 12 mm and 110 mm tall
• Max. 20 mm thick

Polarized Light Measurement Attachment
(for UV/VIS region: 240 to 700 nm)
(P/N 204-03290-41)
(for VIS region: 390 to 700 nm)
(P/N 204-03290-42)

Measuring fluorescence polarization provides information on the size, fluidity, and surrounding environment
of molecules.
The wide wavelength range of this attachment, from 240 nm to 700 nm, allows measurement of the
polarized light in UV and near infrared regions.

RF-6000
Spectrofluorophotometer 21
