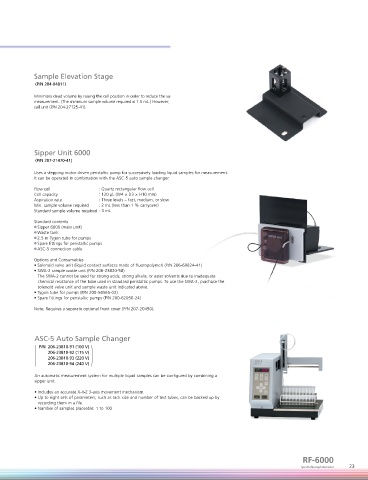

Page 23 - Shimadzu RF-6000

Sample Elevation Stage
(P/N 204-04811)
Minimizes dead volume by raising the cell position in order to reduce the sample volume required for
measurement. (The minimum sample volume required is 1.5 mL.) However, it cannot be used with a micro
cell unit (P/N 204-27125-41).

Sipper Unit 6000
(P/N 207-21470-41)
Uses a stepping motor driven peristaltic pump for successively loading liquid samples for measurement.
It can be operated in combination with the ASC-5 auto sample changer.
Flow cell : Quartz rectangular flow cell
Cell capacity : 120 L (W4 × D3 × H10 mm)
Aspiration rate : Three levels – fast, medium, or slow
Min. sample volume required : 2 mL (less than 1 % carryover)
Standard sample volume required : 3 mL
Standard contents
・ Sipper 6000 (main unit)
・ Waste tank
・ 2.5 m Tygon tube for pumps
・ Spare fittings for peristaltic pumps
・ ASC-5 connection cable
Options and Consumables
• Solenoid valve unit (liquid contact surfaces made of fluoropolymer) (P/N 206-69824-41)
• SWA-2 sample waste unit (P/N 206-23820-58)
The SWA-2 cannot be used for strong acids, strong alkalis, or ester solvents due to inadequate
chemical resistance of the tube used in standard peristaltic pumps. To use the SWA-2, purchase the
solenoid valve unit and sample waste unit indicated above.
• Tygon tube for pumps (P/N 200-54565-02)
• Spare fittings for peristaltic pumps (P/N 200-62050-24)
Note: Requires a separate optional front cover (P/N 207-20490).

ASC-5 Auto Sample Changer
206-23810-91 (100 V)
P/N
（ 206-23810-94 (240 V)）
206-23810-92 (115 V)
206-23810-93 (220 V)
An automatic measurement system for multiple liquid samples can be configured by combining a
sipper unit.
• Includes an accurate X-Y-Z 3-axis movement mechanism.
• Up to eight sets of parameters, such as rack size and number of test tubes, can be backed up by
recording them in a file.
• Number of samples placeable: 1 to 100

RF-6000
Spectrofluorophotometer 23
