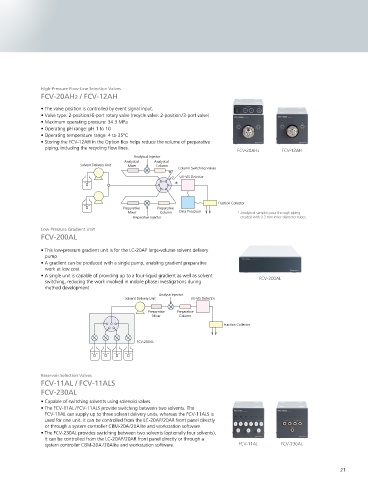

High-Pressure Flow-Line Selection Valves
FCV-20AH2 / FCV-12AH

• The valve position is controlled by event signal input.
• Valve type: 2-position/6-port rotary valve (recycle valve: 2-position/3-port valve)
• Maximum operating pressure: 34.3 MPa
• Operating pH range: pH 1 to 10
• Operating temperature range: 4 to 35°C
• Storing the FCV-12AH in the Option Box helps reduce the volume of preparative
piping, including the recycling flow lines.
FCV-20AH2 FCV-12AH
Analytical Injector
Analytical Analytical
Solvent Delivery Unit Mixer Column
Column Switching Valves
*
UV-VIS Detector
*

Fraction Collector
Preparative Preparative
Mixer Column Data Processor * Analytical samples pass through piping
Preparative Injector created with 0.3 mm inner diameter tubes.
Low-Pressure Gradient Unit
FCV-200AL

• This low-pressure gradient unit is for the LC-20AP large-volume solvent delivery
pump.
• A gradient can be produced with a single pump, enabling gradient preparative
work at low cost.
• A single unit is capable of providing up to a four-liquid gradient as well as solvent FCV-200AL
switching, reducing the work involved in mobile phase investigations during
method development.
Analysis Injector
Solvent Delivery Unit UV-VIS Detector

Preparative Preparative
Mixer Column
Fraction Collector

FCV-200AL

Reservoir Selection Valves
FCV-11AL / FCV-11ALS
FCV-230AL
• Capable of switching solvents using solenoid valves.
• The FCV-11AL /FCV-11ALS provide switching between two solvents. The
FCV-11AL can supply up to three solvent delivery units, whereas the FCV-11ALS is
used for one unit. It can be controlled from the LC-20AP/20AR front panel directly
or through a system controller CBM-20A/20Alite and workstation software.
• The FCV-230AL provides switching between two solvents (optionally four solvents).
It can be controlled from the LC-20AP/20AR front panel directly or through a
system controller CBM-20A /20Alite and workstation software. FCV-11AL FCV-230AL

21
