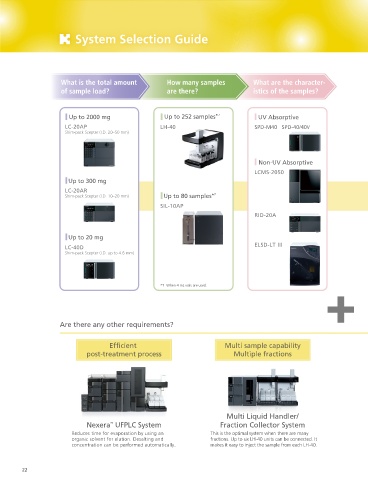

System Selection Guide

What is the total amount How many samples What are the character-
of sample load? are there? istics of the samples?

Up to 2000 mg Up to 252 samples * 7 UV Absorptive
LC-20AP LH-40 SPD-M40 SPD-40/40V
Shim-pack Scepter (I.D. 20–50 mm)

Non-UV Absorptive
LCMS-2050
Up to 300 mg
LC-20AR
Shim-pack Scepter (I.D. 10–20 mm) Up to 80 samples * 7
SIL-10AP
RID-20A

Up to 20 mg
ELSD-LT III
LC-40D
Shim-pack Scepter (I.D. up to 4.6 mm)

*7 When 4 mL vials are used.

Are there any other requirements?

Ef cient Multi sample capability
post-treatment process Multiple fractions

Multi Liquid Handler/
Nexera UFPLC System Fraction Collector System
™
Reduces time for evaporation by using an This is the optimal system when there are many
organic solvent for elution. Desalting and fractions. Up to six LH-40 units can be connected. It
concentration can be performed automatically. makes it easy to inject the sample from each LH-40.
