Installation Requirements Microservo MMT Series

1. Avoid the following conditions when installing the device.

• Large temperature fluctuation (Recommended temperature range: + 10 to + 40°C with temperature fluctuation within ± 5°C)
• High humidity
• Direct air blow from air-conditioners
• Exposure to direct sunlight
• Dust
• Vibration (Recommended: below 5 μm)

2. Power source conditions

• Avoid power sources with large voltage fluctuation (within 100 V ± 10%).
When voltage fluctuation is unavoidable, use a dedicated constant voltage power supply.
• Grounding
D Class (Less 100 Ω)

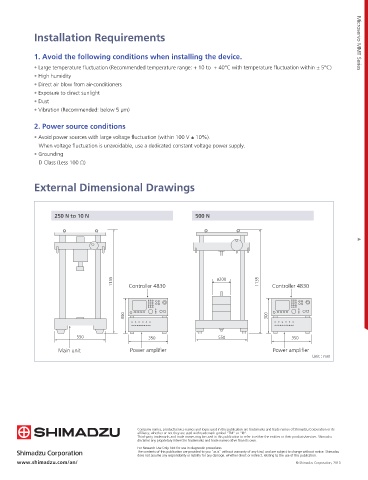

External Dimensional Drawings

250 N to 10 N 500 N

1135 Controller 4830 ø200 1135 Controller 4830

300 300

550 350 550 350

Main unit Power amplifier Power amplifier
Unit : mm
