Page 6 - Shimadzu Microservo MMT Series

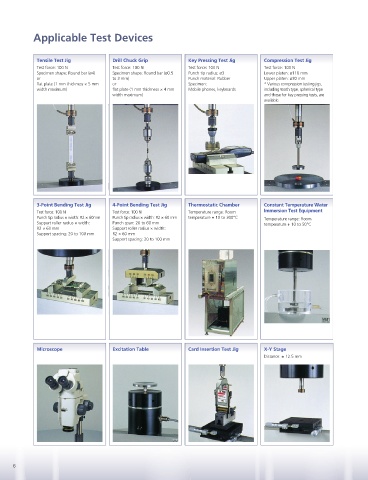

Applicable Test Devices

Tensile Test Jig Drill Chuck Grip Key Pressing Test Jig Compression Test Jig
Test force: 100 N Test force: 100 N Test force: 100 N Test force: 100 N
Specimen shape: Round bar (ø4) Specimen shape: Round bar (ø0.5 Punch tip radius: ø3 Lower platen: ø110 mm
or to 3 mm) Punch material: Rubber Upper platen: ø30 mm
flat plate (1 mm thickness × 5 mm or Specimen: * Various compression testing jigs,
width maximum) flat plate (1 mm thickness × 4 mm Mobile phones, keyboards including tooth type, spherical type
width maximum) and those for key pressing tests, are
available.

3-Point Bending Test Jig 4-Point Bending Test Jig Thermostatic Chamber Constant Temperature Water
Immersion Test Equipment
Test force: 100 N Test force: 100 N Temperature range: Room
Punch tip radius × width: R2 × 60mm Punch tip radius × width: R2 × 60 mm temperature + 10 to 300°C
Temperature range: Room
Support roller radius × width: Punch span: 20 to 60 mm
temperature + 10 to 50°C
R2 × 60 mm Support roller radius × width:
Support spacing: 20 to 100 mm R2 × 60 mm
Support spacing: 20 to 100 mm

Microscope Excitation Table Card Insertion Test Jig X-Y Stage
Distance: ± 12.5 mm

6
