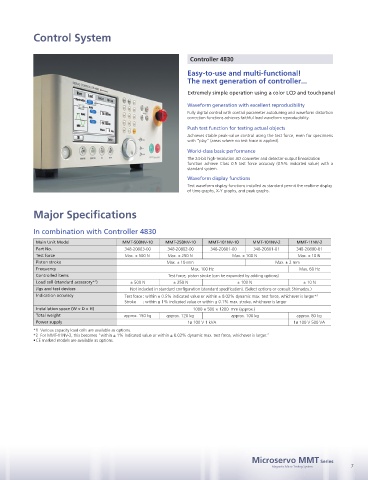

Control System

Controller 4830
Easy-to-use and multi-functional!
The next generation of controller...

Extremely simple operation using a color LCD and touchpanel
Waveform generation with excellent reproducibility
Fully digital control with control parameter autotuning and waveform distortion
correction functions achieves faithful load waveform reproducibility.
Push test function for testing actual objects
Achieves stable peak-value control using the test force, even for specimens
with "play" (areas where no test force is applied).

World-class basic performance
The 24-bit high-resolution AD converter and detector-output linearization
function achieve Class 0.5 test force accuracy (0.5% indicated value) with a
standard system.
Waveform display functions
Test waveform display functions installed as standard permit the realtime display
of time graphs, X-Y graphs, and peak graphs.

Major Specifications

In combination with Controller 4830
Main Unit Model MMT-500NV-10 MMT-250NV-10 MMT-101NV-10 MMT-101NV-2 MMT-11NV-2
Part No. 348-20803-00 348-20802-00 348-20801-00 348-20801-01 348-20800-01
Test force Max. ± 500 N Max. ± 250 N Max. ± 100 N Max. ± 10 N
Piston stroke Max. ± 10 mm Max. ± 2 mm
Frequency Max. 100 Hz Max. 60 Hz
Controlled items Test force, piston stroke (can be expanded by adding options)
1
Load cell (standard accessory* ) ± 500 N ± 250 N ± 100 N ± 10 N
Jigs and test devices Not included in standard configuration (standard specification). (Select options or consult Shimadzu.)
2
Indication accuracy
Test force : within ± 0.5% indicated value or within ± 0.02% dynamic max. test force, whichever is larger*
Stroke : within ± 1% indicated value or within ± 0.1% max. stroke, whichever is larger
Installation space (W × D × H) 1000 × 500 × 1200 mm (approx.)
Total weight approx. 150 kg approx. 120 kg approx. 100 kg approx. 80 kg
Power supply 1ø 100 V 1 kVA 1ø 100 V 500 VA
*1 Various capacity load cells are available as options.
*2 For MMT-11NV-2, this becomes “within ± 1% indicated value or within ± 0.02% dynamic max. test force, whichever is larger.”
•CE marked models are available as options.
