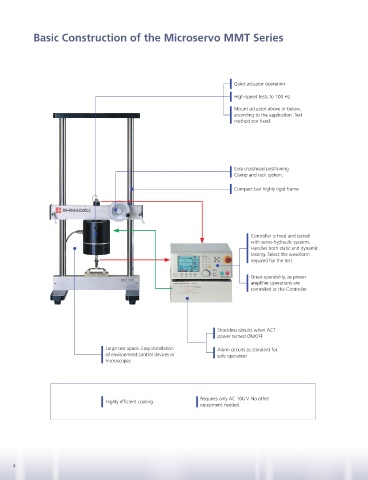

Basic Construction of the Microservo MMT Series

Quiet actuator operation
High-speed tests to 100 Hz

Mount actuator above or below,
according to the application. Test
method not fixed.

Easy crosshead positioning.
Clamp and rack system.

Compact but highly rigid frame

Controller is tried and tested
with servo-hydraulic systems.
Handles both static and dynamic
testing. Select the waveform
required for the test.

Great operability, as power
amplifier operations are
controlled at the Controller.

Shockless circuits when ACT
power turned ON/OFF
Large test space. Easy installation
Alarm circuits as standard for
of environment control devices or
safe operation
microscopes.

Requires only AC 100 V. No other
Highly efficient cooling
equipment needed.
