Page 9 - Shimadzu LABNIRS

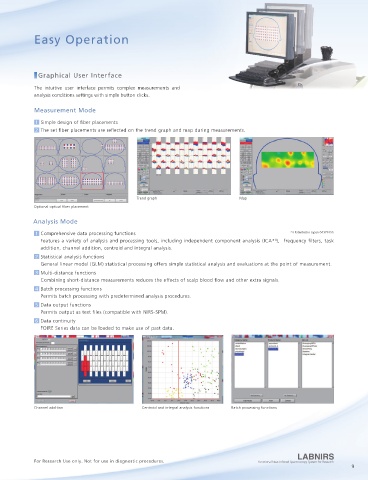

High Performance Easy Operation

Higher Temporal and Spatial Resolution Graphical User Interface

1 Accepts up to 40 sets––2.5 times more than before (142 channels max.). The intuitive user interface permits complex measurements and
2 Spatial resolution doubled for high-density measurements. analysis conditions settings with simple button clicks.
3 Captures rapid cerebral blood ow signals in just 6 ms (previously 25 ms). 25ms
Measurement Mode
Conventional Sampling
1 Simple design of ber placements
6ms 2 The set ber placements are re ected on the trend graph and map during measurements.

New Sampling

Multi-Channel Measurements Normal Placement High-Density Placement 3
High Sensitivity is the Basis for Reliable Measurements 2.5 2 deoxy Hb 780 805 830

1 Three semiconductor laser wavelengths capture more accurate data. Molecular Absorption Coef cient 1.5
oxy Hb
2 A photomultiplier tube captures the weakest cerebral signals. 0.5 1 oxy Hb
950
Flexible Fiber Placements 0 650 750 850 Wavelength (nm) Optional optical ber placement Trend graph Map
Fiber Shape Selection
Time-division illumination permits unrestricted ber placements. Analysis Mode
Enables the effective coverage of the area of interest with a limited Select the ber shape according to the aim of the research and the
number of bers. environment. 1 Comprehensive data processing functions *4 Patented in Japan 04379155
Features a variety of analysis and processing tools, including independent component analysis (ICA* ), frequency lters, task
4
addition, channel addition, centroid and integral analysis.
One-Plane 2 Statistical analysis functions
Placement
(for whole-head Three-Plane General linear model (GLM) statistical processing offers simple statistical analysis and evaluations at the point of measurement.
measurements) Placement
3 Multi-distance functions
Combining short-distance measurements reduces the effects of scalp blood ow and other extra signals.

Four-Plane 4 Batch processing functions
Placement L-Shaped Fiber Straight-Type Fiber
High-Density (for two-person Permits batch processing with predetermined analysis procedures.
Placement measurements)
5 Data output functions
1
Holder: FLASH* (Flexible Adjustable Surface Holder) Permits output as text les (compatible with NIRS-SPM).
6 Data continuity
Flexible Adjustable Surface Holder (FLASH) supports more stable measurements. *1 Patented in Japan 04254420 FOIRE Series data can be loaded to make use of past data.
*2 Supports high-density, short-distance measurements
Select from the wide range of holders, which are easily customizable. *3 Exclusive use of ber set for infants measurement

Forehead Fiber Holder Parietal Fiber Holder * 2 Temporal Fiber Holder * 2 Whole-head Fiber Holder EEG simultaneous
measurement ber holder

Channel addition Centroid and integral analysis functions Batch processing functions

Fiber Holder for infants Fiber Holder for infants Whole-head Fiber Holder for Holder Kit
Measurement, Type A * 3 Measurement, Type B * 3 infants Measurement * 3
For Research Use only. Not for use in diagnostic procedures. functional Near-Infrared Spectroscopy System for Research
