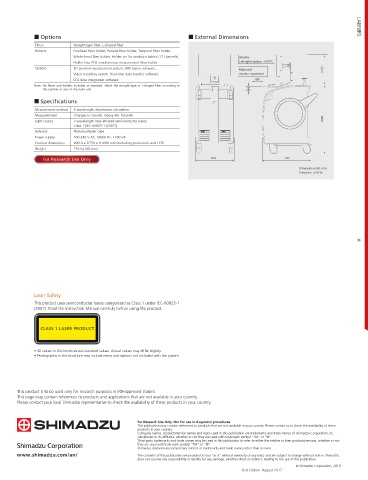

Page 12 - Shimadzu LABNIRS

C297-E097B

■ Options ■ External Dimensions LABNIRS
Fibers Straight-type fiber, L-shaped fiber
Holders Forehead fiber holder, Parietal fiber holder, Temporal fiber holder,
Whole-head fiber holder, Holder set for newborn babies (17 channels), Monitor
Holder kits, EEG simultaneous measurement fiber holder Left-right rotation: ±180°C
Options 3D position measurement system, MRI fusion software, Keyboard/ (477)
Video recording system, Real-time data transfer software, monitor movement
EEG data integration software 188 functional Near-Infrared Spectroscopy System for Research
Note: No fibers and holders included as standard. Select the straight-type or L-shaped fiber according to
the number of sets of the main unit. 68 LABNIRS
■ Specifications
Measurement method 3-wavelength absorbance calculation
Measured item Changes in Oxy-Hb, Deoxy-Hb, Total-Hb
Light source 3-wavelength near-infrared semiconductor lasers, 1090
Class 1 [IEC-60825-1 (2007)]
Detector Photomultiplier tube
Power supply 100-240 V AC, 50/60 Hz, 1100 VA
External dimensions W610 × D750 × H1090 mm (excluding protrusions and LCD)
Weight 230 kg (40 sets)
For Research Use Only 610 750
Dimension units: mm
Tolerance: ±10 %

Laser Safety
This product uses semiconductor lasers categorized as Class 1 under IEC-60825-1
(2007). Read the Instruction Manual carefully before using the product.

CLASS 1 LASER PRODUCT

• All values in this brochure are standard values. Actual values may differ slightly.
• Photographs in this brochure may include items and options not included with the system.

This product is to be used only for research purposes in IRB-approved studies.
