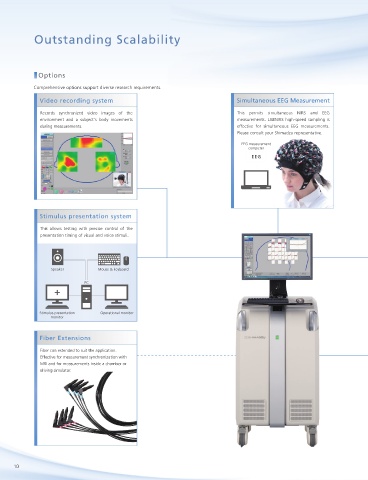

Outstanding Scalability

Options Flexible System Con guration

Comprehensive options support diverse research requirements. Three Steps to Customize the Best System for You
Video recording system Simultaneous EEG Measurement MRI Fusion Software STEP Select the main unit.
1
Records synchronized video images of the This permits simultaneous NIRS and EEG Map images based on 3D information can be Select between 4 and 40 sets in increments of 4 sets to suit your research
environment and a subject's body movements measurements. LABNIRS high-speed sampling is displayed over individual MRI images. Using a
application. More sets can be subsequently added.
during measurements. effective for simultaneous EEG measurements. whole-head FLASH holder permits seamless
Please consult your Shimadzu representative. mapping of the entire brain.
4 sets 8 sets 12 sets 16 sets
EEG measurement
computer 10ch 24ch 38ch 52ch
EEG 20 sets 24 sets 28 sets 32 sets
67ch 82ch 97ch 112ch
36 sets 40 sets
127ch 142ch
* Number of channels (ch) indicates the maximum number of logical
channels.

Stimulus presentation system
3D Position Measurement
This allows testing with precise control of the System
presentation timing of visual and voice stimuli. Select the ber shape.
Attach the bers to measure three-dimensional
information. This is an indispensable item to Select L-shaped or straight-type optical bers to suit the research application
achieve highly reproducible measurements. and measurement environment.

Speaker Mouse & keyboard

PC

Stimulus presentation Operational monitor
monitor

Fiber Extensions STEP Select the holder.
Real-Time Data Transfer System
Fiber can extended to suit the application. 2 Select the holder you need from the various types available. (See page 8.)
Effective for measurement synchronization with This supports biofeedback with the subject and
MRI and for measurements inside a chamber or brain-machine interface (BMI) to control external
driving simulator. devices by transferring measured data to another Forehead EEG simultaneous
PC in real time. Please consult your Shimadzu Parietal (high-density) measurements
representative. Holder set for
Temporal (high-density) newborn babies
Whole-head Holder kits
Feedback PC
Control
STEP Select the options.
3 Select the required options for your research application. (See page 10.)

For Research Use only. Not for use in diagnostic procedures. functional Near-Infrared Spectroscopy System for Research
