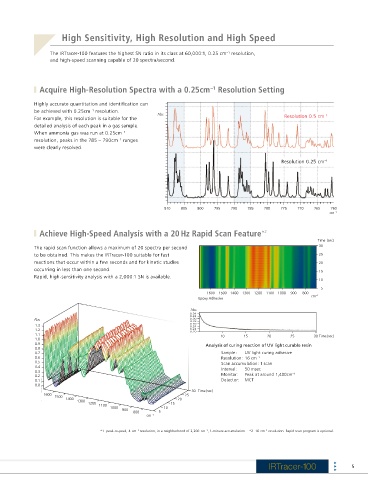

Page 5 - Shimadzu IRTracer-100
P. 5

High Sensitivity, High Resolution and High Speed

                                                                            −1
                  The IRTracer-100 features the highest SN ratio in its class at 60,000:1, 0.25 cm  resolution,
                  and high-speed scanning capable of 20 spectra/second.




              Acquire High-Resolution Spectra with a 0.25cm  Resolution Setting
                                                                       −1
            Highly accurate quantitation and identi cation can
            be achieved with 0.25cm  resolution.
                               −1
                                                     Abs                                                    −1
            For example, this resolution is suitable for the                                   Resolution 0.5 cm
            detailed analysis of each peak in a gas sample.
            When ammonia gas was run at 0.25cm
                                         −1
            resolution, peaks in the 785 – 790cm  ranges
                                        −1
            were clearly resolved.
                                                                                              Resolution 0.25 cm −1








                                                       810   805  800   795   790  785  780   775   770  765   760
                                                                                                              cm −1

              Achieve High-Speed Analysis with a 20 Hz Rapid Scan Feature               * 2
                                                                                                          Time  (sec)
            The rapid scan function allows a maximum of 20 spectra per second                              30
            to be obtained. This makes the IRTracer-100 suitable for fast                                  25
            reactions that occur within a few seconds and for kinetic studies                              20
            occurring in less than one second.                                                             15
            Rapid, high-sensitivity analysis with a 2,000:1 SN is available.
                                                                                                           10
                                                                                                           5
                                                                      1600  1500 1400  1300  1200  1100  1000  900  800
                                                                   Epoxy Adhesive                       cm −1

                                                                Abs
                                                                0.34
                                                                0.32
            Abs                                                 0.30
                                                                0.28
             1.3                                                0.26
                                                                0.24
             1.2                                                0.22
                                                                0.20
             1.1                                                          10      15      20     25      30 Time (sec)
             1.0
             0.9                                                     Analysis of curing reaction of UV light curable resin
             0.8
             0.7                                                          Sample:  UV light curing adhesive
             0.6                                                          Resolution: 16 cm −1
             0.5                                                          Scan accumulation: 1 scan
             0.4                                                          Interval:  50 msec
             0.3
             0.2                                                          Monitor:  Peak at around 1,400cm −1
             0.1                                                          Detector:  MCT
             0.0
                                                                30 Time (sec)
               1600                                           25
                   1500
                       1400                                 20
                           1300
                              1200                        15
                                  1100
                                     1000              10
                                         900
                                             800      5
                                                  cm −1
                                  *1  peak-to-peak, 4  cm −1  resolution, in a neighborhood of 2,200  cm −1 , 1-minute accumulation    *2  16 cm −1  resolution. Rapid scan program is optional.
                                                                                          IRTracer-100               5
