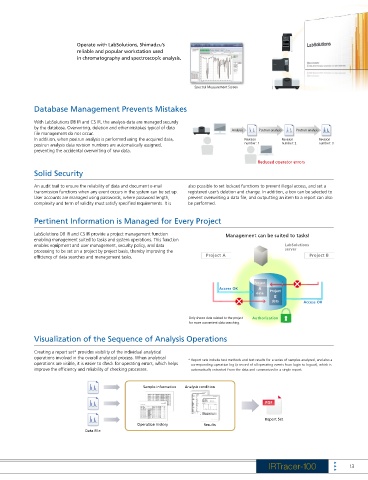

P. 13

Operate with LabSolutions, Shimadzu’s
                           reliable and popular workstation used
                           in chromatography and spectroscopic analysis.





                                                                 Spectral Measurement Screen


            Database Management Prevents Mistakes

            With LabSolutions DB IR and CS IR, the analysis data are managed securely
            by the database. Overwriting, deletion and other mistakes typical of data   Analysis  Postrun analysis  Postrun analysis
             le management do not occur.
            In addition, when postrun analysis is performed using the acquired data,   Revision   Revision   Revision
            postrun analysis data revision numbers are automatically assigned,    number: 1   number: 2    number: 3
            preventing the accidental overwriting of raw data.
                                                                                      Reduced operator errors
            Solid Security

            An audit trail to ensure the reliability of data and document e-mail   also possible to set lockout functions to prevent illegal access, and set a
            transmission functions when any event occurs in the system can be set up.   registered user’s deletion and change. In addition, a box can be selected to
            User accounts are managed using passwords, where password length,   prevent overwriting a data  le, and outputting an item to a report can also
            complexity and term of validity must satisfy speci ed requirements. It is   be performed.

            Pertinent Information is Managed for Every Project

            LabSolutions DB IR and CS IR provide a project management function   Management can be suited to tasks!
            enabling management suited to tasks and system operations. This function
            enables equipment and user management, security policy, and data                   LabSolutions
            processing to be set on a project by project basis, thereby improving the          server
            ef ciency of data searches and management tasks.         Project A                          Project B




                                                                                     Project
                                                                          Access OK    A  Project
                                                                                      data
                                                                                            B
                                                                                           data       Access OK

                                                                Only shows data related to the project  Authorization
                                                                for more convenient data searching.

            Visualization of the Sequence of Analysis Operations

            Creating a report set* provides visibility of the individual analytical
            operations involved in the overall analytical process. When analytical   * Report sets include test methods and test results for a series of samples analyzed, and also a
            operations are visible, it is easier to check for operating errors, which helps   corresponding operation log (a record of all operating events from login to logout), which is
            improve the ef ciency and reliability of checking processes.  automatically extracted from the data and summarized in a single report.


                                                 Sample information  Analysis condition




                                                                                         Report Set
                                              Operation history     Results
                             Data File





                                                                                          IRTracer-100               13
