Page 22 - Shimadzu IRAffinity-1S

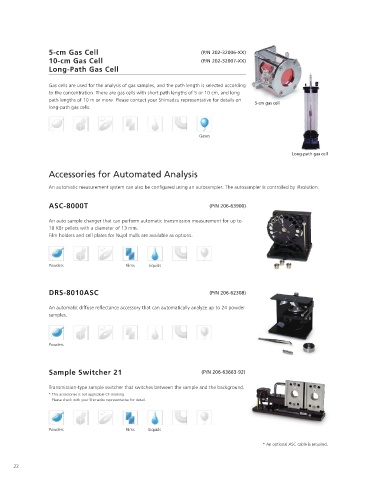

5-cm Gas Cell (P/N 202-32006-XX) Accessories for Minute Samples Minute Samples
10-cm Gas Cell (P/N 202-32007-XX)
Long-Path Gas Cell A single-reflection ATR accessory, such as a MIRacle or DuraSampIIR, is useful for the analysis of sample sizes of the order of a few mm.
The sample is taken out, placed on a prism, and firmly secured with the clamp provided.
An infrared microscope is useful for the analysis of sample sizes from a few mm down to approximately 10 µm.
Gas cells are used for the analysis of gas samples, and the path length is selected according
In addition to transmission and reflection modes, the ATR mode is also available, enabling the analysis of various forms of minute samples.
to the concentration. There are gas cells with short path lengths of 5 or 10 cm, and long
path lengths of 10 m or more. Please contact your Shimadzu representative for details on
5-cm gas cell Infrared Microscope AIM-9000 (P/N 206-32000-58(Narrow band MCT))
long-path gas cells.
The AIM-9000 incorporates a bright, optimized optical system and a high-sensitivity MCT detector. Not only enabling
high-sensitivity measurement of micro samples, but the system has also been automated to ensure all steps involved in micro
analysis can be performed quickly and easily.
Gases
Features of the AIM-9000
Long-path gas cell • Incorporates a bright, optimized optical system and a high-sensitivity
MCT detector to enable high-sensitivity measurement.
• Enables reflection/ATR measurements on samples up to 40 mm thick.
Accessories for Automated Analysis • Comes with a digital zoom function of up to 330x magnification using
the wide-view camera (optional) and the microscope camera. Enables the
An automatic measurement system can also be configured using an autosampler. The autosampler is controlled by IRsolution. measurement position to be quickly determined.
• Includes an automatic contaminant recognition system that automatically
ASC-8000T (P/N 206-63900) determines the measurement position as a standard feature.
• Up to 60 measurement position can be recorded.
An auto sample changer that can perform automatic transmission measurement for up to • Includes a contaminant analysis program to identify the cause of failures
18 KBr pellets with a diameter of 13 mm. as a standard feature.
Film holders and cell plates for Nujol mulls are available as options. Note: In order to use this attachment, an external beam extraction kit (P/N
206-32570-42), an AIM connection kit (P/N 206-32607-42), and accessories for the
AIM-9000 (P/N 206-32799-41) are required.

ATR Objective (slide-on type) (Ge prism: P/N 206-32600-41, ZnSe prism: P/N 206-32601-41)
Powders Films Liquids
a
surements
This objective lens is used when performing ATR measurements with the AIM-9000
with

AI

M9

the
000
n
eatures 15x
f
ection ob
e
j
fl
ctive
g
le re
infrared microscope. Using a cone-type prism, this single reflection objective features 15x
DRS-8010ASC (P/N 206-62308) magnification and a 45-degree mean incident angle. The slide-on type prism makes it easy
infrared
to switch back and forth between visible observation and infrared measurement..
measurement
and
n
An automatic diffuse reflectance accessory that can automatically analyze up to 24 powder
samples.
Mapping Program (P/N 206-98427)
Powders
The mapping program measures the absorption distribution on the surface of a sample and creates imaging data when used with the
Shimadzu AIM-9000 infrared microscope.
It allows setting of mapping parameters, such as the mapping range, the scan intervals, and the background positions, on the composite
Sample Switcher 21 (P/N 206-63663-92) visible images. It also supports area mapping and random mapping modes. In addition to mapping in the conventional transmittance and
reflectance modes, micro-ATR mapping is also available. (An optional ATR objective is required. It also requires a separate pressure sensor)
Transmission-type sample switcher that switches between the sample and the background. From the acquired mapping data, it is possible to extract spectra and to perform calculations for specific peaks and functional group
* This accessories is not applicable CE marking. mapping by multivariate analysis.
Please check with your Shimadzu representative for detail.
Other Accessories
In addition to Shimadzu genuine accessories, unique FTIR accessories from all over the world can be used with the IRAffinity-1S. Please
Powders Films Liquids contact your Shimadzu representative about accessories that are not listed in this catalog. We will provide details on accessories that are
appropriate for specific samples and applications. Also, note that it may not be possible to use the previous FTIR-8000 series accessories. If
* An optional ASC cable is required. necessary, please check with your Shimadzu representative.
IRAffinity-1S
22 Fourier Transform Infrared Spectrophotometer 23
