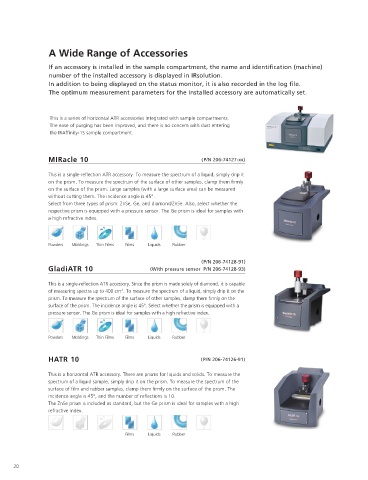

A Wide Range of Accessories DRS-8000A (P/N 206-62301-58)

If an accessory is installed in the sample compartment, the name and identification (machine) Although powder samples are mixed with KBr, as with the KBr pellet method, they are
number of the installed accessory is displayed in IRsolution. analyzed in their original state. It is not necessary to create pellets. For plastic moldings,
part of the surface is scraped off with the emery paper attached to the SiC sampler (P/N
In addition to being displayed on the status monitor, it is also recorded in the log file.
200-66750), and the powdered sample formed on the paper is analyzed. Diffuse
The optimum measurement parameters for the installed accessory are automatically set.
reflectance spectra that are similar to transmittance spectra are produced by Kubelka–Munk
conversion.

This is a series of horizontal ATR accessories integrated with sample compartments.
The ease of purging has been improved, and there is no concern with dust entering
the IRAffinity-1S sample compartment. Powders Moldings
SiC Sampler
(Option)

MIRacle 10 (P/N 206-74127-xx) SRM-8000A (P/N 206-62304-91)

This is a single-reflection ATR accessory. To measure the spectrum of a liquid, simply drip it A specular reflectance accessory with a 10° incidence angle is used for the analysis of thin
on the prism. To measure the spectrum of the surface of other samples, clamp them firmly films on a metal plate with a mm order of thickness. In the case of mirror-like plastic
on the surface of the prism. Large samples (with a large surface area) can be measured samples, the light specularly reflected from the sample surface is measured. Specular
without cutting them. The incidence angle is 45°. reflectance spectra that are similar to transmittance spectra are produced by
Select from three types of prism: ZnSe, Ge, and diamond/ZnSe. Also, select whether the Kramers-Kronig analysis.
respective prism is equipped with a pressure sensor. The Ge prism is ideal for samples with
a high refractive index.

Thin Films
Powders Moldings Thin Films Films Liquids Rubber

(P/N 206-74128-91)
GladiATR 10 (With pressure sensor P/N 206-74128-93) RAS-8000A (P/N 206-62302-91)

A high-sensitivity reflection measurement accessory with incidence angles of 70° and 75° is
This is a single-reflection ATR accessory. Since the prism is made solely of diamond, it is capable
used for the analysis of thin films on a metal plate with an nm order of thickness. Using it
of measuring spectra up to 400 cm . To measure the spectrum of a liquid, simply drip it on the
-1
in combination with the GPR-8000 infrared polarizer (P/N 206-61550) enables
prism. To measure the spectrum of the surface of other samples, clamp them firmly on the
measurement with an even higher level of sensitivity.
surface of the prism. The incidence angle is 45°. Select whether the prism is equipped with a
pressure sensor. The Ge prism is ideal for samples with a high refractive index.
Thin Films
Powders Moldings Thin Films Films Liquids Rubber
GPR-8000
(Option)
HATR 10 (P/N 206-74126-91) ATR-8000A (P/N 206-62303-91)

This is a horizontal ATR accessory. There are prisms for liquids and solids. To measure the This accessory obtains spectra for the surfaces of film-like samples that are clamped firmly
spectrum of a liquid sample, simply drip it on the prism. To measure the spectrum of the on the surface of a prism. Incidence angles of 30°, 45°, and 60° can be selected. The KRS-5
surface of film and rubber samples, clamp them firmly on the surface of the prism. The prism is standard.
incidence angle is 45°, and the number of reflections is 10. A Ge prism is also available for samples with a high refractive index.
The ZnSe prism is included as standard, but the Ge prism is ideal for samples with a high
refractive index.

Films Rubber
Films Liquids Rubber
* ATR spectra similar to transmittance spectra are produced by ATR correction.
