Page 24 - Shimadzu IRAffinity-1S

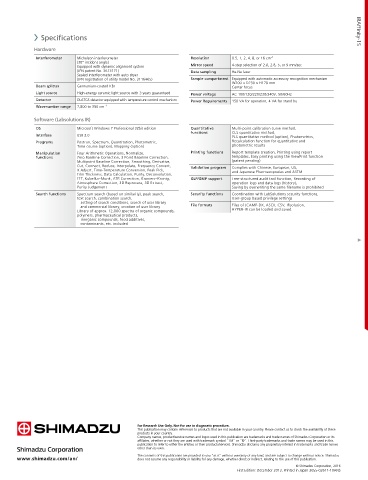

Speci cations IRAffinity-1S

Hardware
Interferometer Michelson interferometer Resolution 0.5, 1, 2, 4, 8, or 16cm −1
(30° incident angle)
Equipped with dynamic alignment system Mirror speed 4-step selection of 2.0, 2.8, 5, or 9mm/sec
(JPN patent No. 3613171) Data sampling He-Ne laser
Sealed interferometer with auto dryer
(JPN registration of utility model No. 3116465) Sample compartment Equipped with automatic accessory recognition mechanism
W200 × D230 × H170 mm
Beam splitter Germanium-coated KBr Center focus
Light source High-energy ceramic light source with 3 years guaranteed Power voltage AC 100/120/220/230/240V, 50/60Hz
Detector DLATGS detector equipped with temperature control mechanism Power Reguirements 150 VA for operation, 4 VA for stand by
Wavenumber range 7,800 to 350cm −1
Software (Labsolutions IR)
OS Microsoft Windows 7 Professional 32bit edition Quantitative Multi-point calibration curve method,
functions CLS quantitative method,
Interface USB 2.0 PLS quantitative method (option), Photometrics,
Programs Postrun, Spectrum, Quantitation, Photometric, Recalculation function for quantitative and
Time course (option), Mapping (option) photometric results
Manipulation Four Arithmetic Operations, Normalize, Printing functions Report template creation, Printing using report
functions Zero Baseline Correction, 3 Point Baseline Correction, templates, Easy printing using the ViewPrint function
Multipoint Baseline Correction, Smoothing, Derivative, (patent pending)
Cut, Connect, Reduce, Interpolate, Frequency Convert, Validation program Complies with Chinese, European, US,
X Adjust, Time-Temperature Conversion, Peak Pick, and Japanese Pharmacopoeias and ASTM
Film Thickness, Data Calculation, Purity, Deconvolution,
FFT, Kubelka–Munk, ATR Correction, Kramers–Kronig, GLP/GMP support Tree-structured audit trail function, Recording of
Atmosphere Correction, 3D Reprocess, 3D Extract, operation logs and data logs (history),
Purity Judgement Saving by overwriting the same §lename is prohibited
Search functions Spectrum search (based on similarity), peak search, Security functions Coordination with LabSolutions security functions,
text search, combination search, User-group based privilege settings
setting of search conditions, search of user library
a nd commercial library, creation of user library File formats Files of JCAMP-DX, ASCII, CSV, IRsolution,
Library of approx. 12,000 spectra of organic compounds, HYPER-IR can be loaded and saved.
polymers, pharmaceutical products,
inorganic compounds, food additives,
contaminants, etc. included
