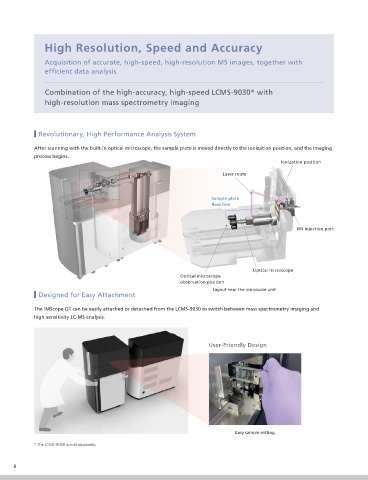

High Resolution, Speed and Accuracy
Acquisition of accurate, high-speed, high-resolution MS images, together with
ef cient data analysis
Combination of the high-accuracy, high-speed LCMS-9030* with
high-resolution mass spectrometry imaging
Revolutionary, High Performance Analysis System
After scanning with the built-in optical microscope, the sample plate is moved directly to the ionization position, and the imaging
process begins.
Ionization position
Laser route
Sample plate
ow line
MS injection port
Optical microscope
Optical microscope
observation position
Layout near the ion source unit
Designed for Easy Attachment
The iMScope QT can be easily attached or detached from the LCMS-9030 to switch between mass spectrometry imaging and
high-sensitivity LC-MS analysis.
User-Friendly Design
Easy sample setting
* The LCMS-9030 is sold separately.
