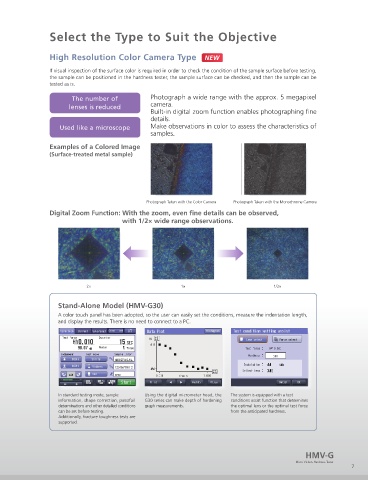

Excellent Automatic Reading Function Select the Type to Suit the Objective

In Vickers hardness measurements, the diagonal length of the indentation must be measured. With the PC software for High Resolution Color Camera Type NEW
the HMV-G series, images are acquired by the digital camera, and the diagonal length of the indentation is measured
automatically. This eliminates human error and leads to stable results. If visual inspection of the surface color is required in order to check the condition of the sample surface before testing,
the sample can be positioned in the hardness tester, the sample surface can be checked, and then the sample can be
tested as is.
Calculate the hardness
Determine the test position, and the statistical The number of Photograph a wide range with the approx. 5 megapixel
and perform the test Measure the indentation length camera.
values lenses is reduced
Built-in digital zoom function enables photographing ne
Align the measurement lines with the details.
corners of the indentation while peering Used like a microscope Make observations in color to assess the characteristics of
through a lens with one eye samples.
Measurement values are inconsistent Examples of a Colored Image
(Surface-treated metal sample)
The measurement takes time

Experience is required

Photograph Taken with the Color Camera Photograph Taken with the Monochrome Camera
Digital Zoom Function: With the zoom, even fine details can be observed,
with 1/2× wide range observations.

With the HMV-G31 Automatic Reading Function:

Capable of measuring 2× 1× 1/2×
Reduced variability even scored surfaces

Stand-Alone Model (HMV-G30)
Anyone can obtain the same test results. 5IFSF JT OP OFFE UP QPMJTI UIF TBNQMFT
A color touch panel has been adopted, so the user can easily set the conditions, measure the indentation length,
and display the results. There is no need to connect to a PC.
Less time needed
for measurements

High-speed measurements
(approximately 0.3 seconds)

In standard testing mode, sample Using the digital micrometer head, the The system is equipped with a test
information, shape correction, pass/fail G30 series can make depth of hardening conditions assist function that determines
determinations and other detailed conditions graph measurements. the optimal lens or the optimal test force
can be set before testing. from the anticipated hardness.
Additionally, fracture toughness tests are
Less burden on the analyst supported.

HMV-G
Micro Vickers Hardness Tester
