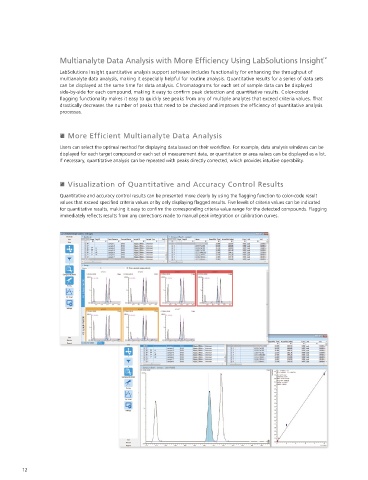

Multianalyte Data Analysis with More Efficiency Using LabSolutions Insight ™
LabSolutions Insight quantitative analysis support software includes functionality for enhancing the throughput of Easy Control of Quantitation and Reference Ions
multianalyte data analysis, making it especially helpful for routine analysis. Quantitative results for a series of data sets
can be displayed at the same time for data analysis. Chromatograms for each set of sample data can be displayed Analysts can update retention times and reference ion ratios quickly and easily from a single standard or a group of
side-by-side for each compound, making it easy to confirm peak detection and quantitative results. Color-coded standards. It is also easy to reassign quantitation ions as needed for method development purposes or because of
flagging functionality makes it easy to quickly see peaks from any of multiple analytes that exceed criteria values. That unexpected matrix interferences.
drastically decreases the number of peaks that need to be checked and improves the efficiency of quantitative analysis
processes.

More Efficient Multianalyte Data Analysis

Users can select the optimal method for displaying data based on their workflow. For example, data analysis windows can be
displayed for each target compound or each set of measurement data, or quantitation or area values can be displayed as a list.
If necessary, quantitative analysis can be repeated with peaks directly corrected, which provides intuitive operability. Q161.00>90.00 (+) 7.78e4 Q161.00>99.00 (+) 7.34e4
Propanil Propanil Quantitation ion
Qualification ion
6.0e4 Matrix Peaks 6.0e4
Visualization of Quantitative and Accuracy Control Results
4.0e4 4.0e4
Quantitative and accuracy control results can be presented more clearly by using the flagging function to color-code result
values that exceed specified criteria values or by only displaying flagged results. Five levels of criteria values can be indicated 2.0e4 2.0e4
for quantitative results, making it easy to confirm the corresponding criteria value range for the detected compounds. Flagging
immediately reflects results from any corrections made to manual peak integration or calibration curves. 0.0e0 0.0e0
13.00 13.25 13.50 13.00 13.25 13.50
Analysis of Pesticides in Ginger

Status Review Function
This function can be used to specify the status of all compounds and samples for their management. By specifying a
status, the progress of data analysis work can be accurately recorded and reported.

Rerun

Pending Accept

Network Support Laboratory
GC/MS analysis LC/MS analysis
Data acquired from multiple systems can
be reviewed or confirmed using client
computers connected via a LAN or other
network. If multiple systems are used,
data obtained from each system can be
reviewed from any client computer. Even Operator Operator
in the case of multiple analysts using the
same system, the ability to separate
analytical work from measurement work Office
improves efficiency.
Data review

File Server
Client PC
Analysis administrator
Client PC Client PC Client PC
Data confirmation Operator Operator Operator
File management on a file server is recommended for systems with more than five users.
