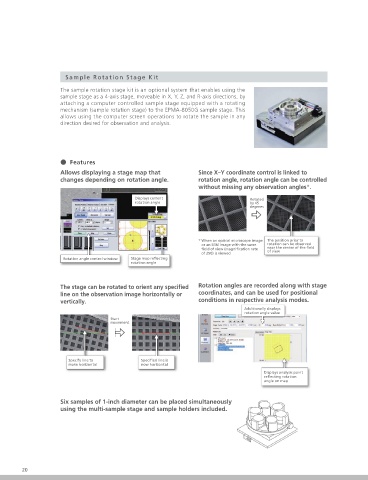

Sample Rotation Stage Kit Other Options

The sample rotation stage kit is an optional system that enables using the ˔ Collection Of EPMA Spectrum
sample stage as a 4-axis stage, moveable in X, Y, Z, and R-axis directions, by This is a collection of qualitative spectrum data measured on standard samples of metals and compounds of
attaching a computer controlled sample stage equipped with a rotating 76 elements. When analyzing qualitative analysis results of samples containing trace elements or complex
mechanism (sample rotation stage) to the EPMA-8050G sample stage. This elements, you can make complex judgment by comparing actual spectra with them.
allows using the computer screen operations to rotate the sample in any
direction desired for observation and analysis. ˔ Analysis PC Set
This is an analysis operating PC that is necessary to the computer system of EPMA. If this option is not
chosen, please prepare PC that meets the requirements for the system before the installation.
˔ External PC/External PC Software
This is a PC on which EPMA analytical software is installed or EPMA analytical software (if installed on a PC
˔ Features provided by the customer) for data processing.
Allows displaying a stage map that Since X–Y coordinate control is linked to By connecting the external PC to the host PC via a network, you can view the analysis data of the host PC,
changes depending on rotation angle. rotation angle, rotation angle can be controlled download and analyze the analysis data of the host PC, and upload the analyzed analysis data to the host PC.
without missing any observation angles*. ˔ Air Compressor
Displays current Rotated EPMA-8050G uses separate compressed air for air valve drive and air damper drive.
rotation angle by 45 If necessary, order a separate compressor for each.
degrees
˔ Cooling Water Circulation Unit
This is a cooling water circulation device with low vibration and excellent temperature stability for cooling the
electron optical system of EPMA-8050G.
* When an optical microscope image The position prior to ˔ Ion Pump Backup Power Supply
or an SEM image with the same rotation can be observed
field of view (magnification rate near the center of the field This is a backup power supply for the ion pumps to automatically continue vacuum evacuation of electron
of view
of 250) is viewed gun when power supply to EPMA is stopped or power outage occurs.
Rotation angle control window Stage map reflecting
rotation angle
˔ Interface for EDS detector
This is an interface module that is required when an EDS (Energy Dispersive X-ray Spectroscopy) system is
The stage can be rotated to orient any specified Rotation angles are recorded along with stage installed on EPMA. With control from the EDS system, the beam of the EPMA can be scanned to obtain SEM
image. In addition, if the EDS system can output an X-ray signal, EPMA can capture that signal in a mapping
line on the observation image horizontally or coordinates, and can be used for positional or line analysis.
vertically. conditions in respective analysis modes.
Additionally displays
rotation angle value
Start Special Accessories (By Separate Arrangement)
movement
˔ Sample Holders ˔ X-Ray Generation Indicator Lamp
˔ Large Specimen Stage (L Stage) ˔ Emergency Machinery Stop Button
˔ Cathodoluminescence Spectrometer ˔ Transfer Vessel

Specify line to Specified line is
make horizontal now horizontal
Displays analysis point
reflecting rotation
angle on map

Six samples of 1-inch diameter can be placed simultaneously
using the multi-sample stage and sample holders included.

EPMA-8050G
Electron Probe Microanalyzer
