Page 14 - Shimadzu DTG-60 Series

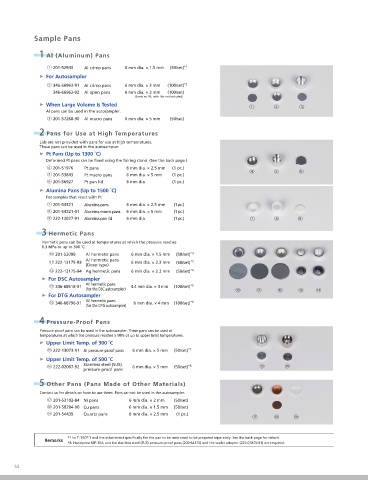

Sample Pans Sample Pans and Cells Speci cally for TGA series; 1 pc. each provided.

1 Al (Aluminum) Pans Sample Pans
Sample pans can be used at temperatures up to 1500 ˚C.
① 201-52943 Al crimp pans 6 mm dia. × 1.5 mm (50/set) *1
For TGA-50
For Autosampler
⑳ 201-52686-01 Pt Sample pan
② 346-66963-91 Al crimp pans 6 mm dia. × 3 mm (100/set) *2 For TGA-51
346-66963-92 Al open pans 6 mm dia. × 3 mm (100/set)
(Same as -91, with lids not included) ㉑ 222-02191-01 Pt macro sample pan ⑳ ㉑
When Large Volume Is Tested ① ② ③ TG Macro Cells
Al pans can be used in the autosampler.
③ 201-57268-90 Al macro pans 6 mm dia. × 5 mm (50/set) ㉒ 201-56569-01 Pt mesh cell 11 mm dia. × 12 mm
㉓ 201-56782-90 Quartz macro cell 11 mm dia. × 14 mm
2 Pans for Use at High Temperatures For TGA-51
Lids are not provided with pans for use at high temperatures. ㉔ 201-56825-90 Alumina macro cell 10 mm dia. × 14 mm
These pans can be used in the autosampler:
Pt Pans (Up to 1300 ˚C) ㉒ ㉓ ㉔
Deformed Pt pans can be xed using the fairing stand. (See the back page.)
④ 201-51976 Pt pans 6 mm dia. × 2.5 mm (1 pc.) ④ ⑤ ⑥
⑤ 201-53843 Pt macro pans 6 mm dia. × 5 mm (1 pc.)
⑥ 201-56927 Pt pan lid 6 mm dia. (1 pc.) Sample Preparation Tool Sample Punch
Alumina Pans (Up to 1500 ˚C)
For samples that react with Pt Used to cut out film samples (in 5 mm diameter) to match the size of the sample pans for thermal analyzers.
⑦ 201-54321 Alumina pans 6 mm dia. × 2.5 mm (1 pc.)
⑧ 201-54321-01 Alumina macro pans 6 mm dia. × 5 mm (1 pc.)
⑨ 222-13027-91 Alumina pan lid 6 mm dia. (1 pc.) ⑦ ⑧ ⑨ Cutting Die (P/N: 222-13586-91) Press Cutting Die (P/N: 222-13740-91)
The sample to be used is about The sample to be used is about
3 Hermetic Pans 50 to 300 µm thick for PET 10 to 100 µm thick for PET
lms. lms.
Hermetic pans can be used at temperatures at which the pressure reaches
0.3 MPa or up to 300 ˚C.
⑩ 201-53090 Al hermetic pans 6 mm dia. × 1.5 mm (50/set) *3
Al hermetic pans
⑪ 222-13175-93 6 mm dia. × 2.3 mm (50/set) *3
(Deep type)
⑫ 222-13175-94 Ag hermetic pans 6 mm dia. × 2.3 mm (50/set) *4
For DSC Autosampler Pt pans Fairing Stand Chucks for TMA Fiber
Al hermetic pans
⑬ 346-68518-91 4.4 mm dia. × 4 mm (100/set) *5 (P/N: 222-13881-91) (P/N: 222-11237-91)
(for the DSC autosampler) ⑩ ⑪ ⑫ ⑬ ⑭
For DTG Autosampler Used to fix deformed Pt pans Used to perform tensile
Al hermetic pans *6
⑭ 346-68796-91 6 mm dia. × 4 mm (100/set) (201-51976 and 201-53843). measurement on fiber-like
(for the DTG autosampler)
samples with TMA.
4 Pressure-Proof Pans
Pressure-proof pans can be used in the autosampler. These pans can be used at
temperatures at which the pressure reaches 5 MPa or up to upper limit temperatures.
Upper Limit Temp. of 300 ˚C Reference Samples and Weight
⑮ 222-13073-91 Al pressure-proof pans 6 mm dia. × 5 mm (50/set) *7 P/N Description Remarks
Upper Limit Temp. of 500 ˚C 201-53537 Alumina, Powder For DSC and DTG
⑯ 222-02067-92 Stainless steel (SUS) 6 mm dia. × 5 mm (50/set) *8 ⑮ ⑯ 222-02012-XX Quartz, Rod For TMA, ø5 × XX [mm]
pressure-proof pans
222-02953-XX Alumina, Rod For TMA, ø5 × XX [mm]
201-52724-01 Plate weight set For DTG and TGA
5 Other Pans (Pans Made of Other Materials) 1, 2, 5, 10, 20, 50, 100, 200 [mg]
Contact us for details on how to use them. Pans cannot be used in the autosampler.
⑰ 201-53102-84 Ni pans 6 mm dia. × 2 mm (50/set)
⑱ 201-58294-90 Cu pans 6 mm dia. × 1.5 mm (50/set)
⑲ 201-54439 Quartz pans 6 mm dia. × 2.5 mm (1 pc.)
⑰ ⑱ ⑲

*1 to 7: SSCP-1 and the attachment speci cally for the pan to be used need to be prepared separately. See the back page for details.
Remarks
*8: Handpress SSP-10A unit for stainless steel (SUS) pressure-proof pans (200-64175) and the sealer adapter (222-01875-91) are required.

60 Series
14 Thermal Analysis Instruments 15
