Page 16 - Shimadzu DTG-60 Series

C160-E006N

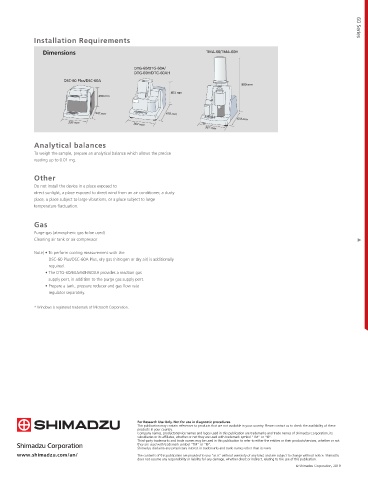

Installation Requirements
60 Series
Dimensions TMA-60/TMA-60H

DTG-60/DTG-60A/
DTG-60H/DTG-60AH
DSC-60 Plus/DSC-60A Thermal Analysis Instruments
880 mm
453 mm
60 Series
290 mm
500 mm 650 mm
624 mm
320 mm
367 mm
367 mm
Analytical balances
To weigh the sample, prepare an analytical balance which allows the precise
reading up to 0.01 mg.

Other
Do not install the device in a place exposed to
direct sunlight, a place exposed to direct wind from an air conditioner, a dusty
place, a place subject to large vibrations, or a place subject to large
temperature fluctuation.

Gas
Purge gas (atmospheric gas to be used)
Cleaning air tank or air compressor

Note) • To perform cooling measurement with the
DSC-60 Plus/DSC-60A Plus, dry gas (nitrogen or dry air) is additionally
required.
• The DTG-60/60A/60H/60AH provides a reaction gas
supply port, in addition to the purge gas supply port.
• Prepare a tank, pressure reducer and gas flow rate
regulator separately.

* Windows is registered trademark of Microsoft Corporation.
