Page 22 - Shimadzu AGX-V2 Series

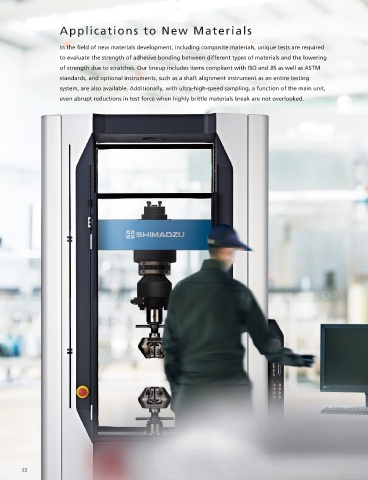

Applications to New Materials PAS Shaft Alignment System

This instrument measures the alignment of a standard sample from the
In the field of new materials development, including composite materials, unique tests are required test axis using an attached strain gauge, and then performs
to evaluate the strength of adhesive bonding between different types of materials and the lowering adjustments to minimize the small deviation. It is possible to secure a
core of ASTM E 1012 Class 8 or higher by combining jigs and test pieces.
of strength due to scratches. Our lineup includes items compliant with ISO and JIS as well as ASTM
standards, and optional instruments, such as a shaft alignment instrument as an entire testing
system, are also available. Additionally, with ultra-high-speed sampling, a function of the main unit,
even abrupt reductions in test force when highly brittle materials break are not overlooked.

Combined Loading Compression Test Jig Jig for Evaluating Compression Residual Strength Properties
(CLC Test, ASTM D6641) (ASTM D7137)
This is for a test method that combines shear load This is for a compression test on a sample that has
and end face load. been damaged in an impact test.

MMB Test Jig Double V-Notched In-Plane Shear Test Jig
(ASTM D6671) (Iosipescu Method, ASTM D5379)
This is for measuring interlaminar breakage in CFRPs, This is for measuring in-plane shear strength, in-plain
and can be used to perform a test with mixed mode I shear fracture strain, and the in-plane shear elastic
(opening mode) and mode II (in-plane shear mode). modulus.

V-Notched Rail Shear Test Jig Open Hole Compression Test Jig
(ASTM D7078) (OHC Test, ASTM D6484)
This is for a shear test of a This is a compression test jig for
sample with 90° V-notches on an open hole test sample that
the top and bottom. has a circular hole in the center.

• Some of these instruments require special optional parts to connect to a testing machine. Contact your Shimadzu representative.
