Page 20 - Shimadzu AGX-V2 Series

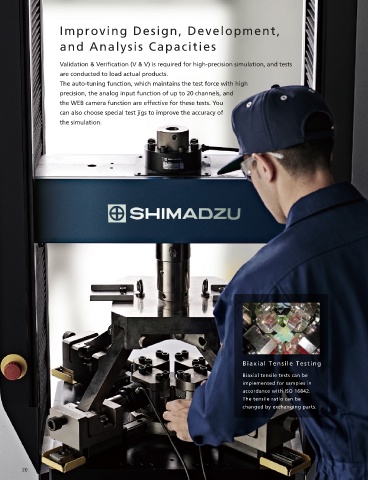

Improving Design, Development, In-Plane Reversing Testing
(Measurements of the Bauschinger Effect)
and Analysis Capacities Plate materials are stretched in the longitudinal

direction. After plastic deformation, the loading
Validation & Verification (V & V) is required for high-precision simulation, and tests direction is reversed, and they are compressed in
are conducted to load actual products. the longitudinal direction. The system can perform
The auto-tuning function, which maintains the test force with high tests so that the plate materials do not buckle
precision, the analog input function of up to 20 channels, and when force is applied again in the tensile direction.
the WEB camera function are effective for these tests. You 1000
can also choose special test jigs to improve the accuracy of 800
600
the simulation. 400
True stress (N/mm2) -200 0
200

-400
-600
-800
-1000
-6.5 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 6.5
Extensometer 1 (True strain) (%)

Actual Object Testing

Compression plates and surface plates enable tests
to be performed with a load applied to large parts
and assemblies. Actual object testing can be used
not only for strength evaluations but to confirm
the results of simulations.

Strain Distribution Measurement
Grid marks applied to the surface of the sample are
compared before and after deformation of the
object, enabling users to investigate the amount of
deformation of the object. Adding Real-Time Strain
View software to the TRViewX video type
Biaxial Tensile Testing non-contact extensometer enables real-time 2D
mapping of the strain distribution. Operations are
Biaxial tensile tests can be
performed seamlessly using the TRViewX software.
implemented for samples in
accordance with ISO 16842.
The tensile ratio can be
changed by exchanging parts.

• Some of these instruments require special optional parts to connect to a testing machine. Contact your Shimadzu representative.
