Page 16 - Shimadzu AGX-V2 Series

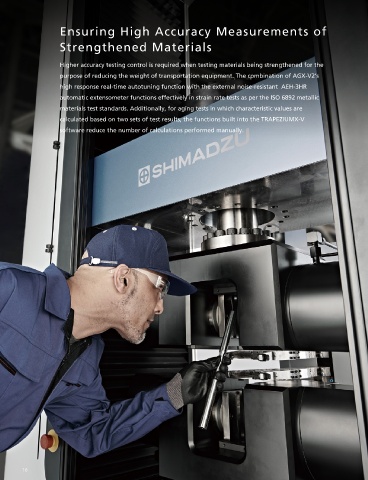

Ensuring High Accuracy Measurements of AEH-3HR High-Accuracy Automatic

Strengthened Materials Extensometer
This ISO 9513 Class 1 compatible extensometer can
measure elongation across a full range of tests, from
Higher accuracy testing control is required when testing materials being strengthened for the
measuring the modulus of elasticity to the breaking
purpose of reducing the weight of transportation equipment. The combination of AGX-V2’s elongation. In combination with the AGX-V2 series
high response real-time autotuning function with the external noise-resistant AEH-3HR machine, this high-resolution extensometer is
compatible with the ISO 6892 strain control
automatic extensometer functions effectively in strain rate tests as per the ISO 6892 metallic requirements.

materials test standards. Additionally, for aging tests in which characteristic values are
calculated based on two sets of test results, the functions built into the TRAPEZIUMX-V
software reduce the number of calculations performed manually.
HFG Hydraulic Flat Grips
(100 kN, 300 kN, 600 kN)

These hydraulic flat grips provide high rigidity and a
stable grip force. Opening or closing the grips and
changing the grip force can be performed from the
smart controller. They are equipped with a sample
attachment guide and, in addition, a specially
designed hydraulic power source has been adopted,
which saves energy through intermittent operation.

MWG Manual Non-Shift DT Differential
Wedge Grips Transformer Extensometer
With these manual grips, turn This extensometer is used for strain
the handle to grasp the sample. measurements of metals, hard
These are popular, cost-effective plastics, and other samples with
grips. By replacing the grip comparatively small elongation. In
teeth, they can accommodate combination with the AGX-V2 series,
not only flat sheets of material, it is compatible with electric
but also tests of rods. calibration, which improves user
friendliness.

High-Temperature Low-Temperature
Test Device Test Device

This furnace is for high-temperature For tests of brittleness,
tests of heat-resistant alloys and low-temperature immersion
ceramics. In combination with a tanks for implementing bending
special extensometer, it is compatible tests in liquid nitrogen, and
with strain measurements and strain cryostats for creating
control. Select from a lineup ultra-low-temperature
featuring a duplex unit that makes environments can be created.
the most of the test cycle time, an IR Tests can be implemented at
lamp furnace capable of high-speed -196 °C.
heating, and a unit with a
temperature range up to 1500 °C.

• Some of these instruments require special optional parts to connect to a testing machine. Contact your Shimadzu representative.
