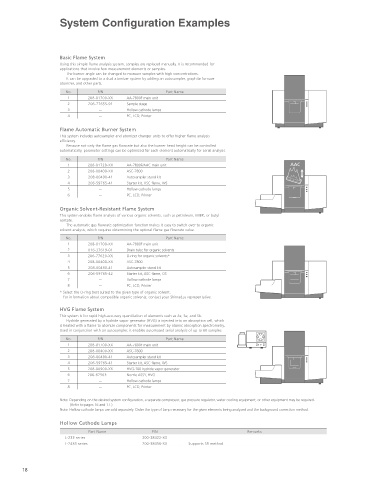

System Configuration Examples
Basic Flame System Furnace Autosampler System
Using this simple flame analysis system, samples are replaced manually. It is recommended for This dedicated furnace analysis system offers simple operability, high sensitivity, and high stability.
applications that involve few measurement elements or samples. The ASC-7800 autosampler can mix up to four kinds of solutions (such as diluents, standard
The burner angle can be changed to measure samples with high concentrations. solutions, samples, or matrix modifiers) before injection.
It can be upgraded to a dual atomizer system by adding an autosampler, graphite furnace
atomizer, and other parts. No. P/N Part Name
1 208-01710-XX AA-7800G main unit
No. P/N Part Name 2 208-00320-58 GFA-7800
1 208-01700-XX AA-7800F main unit 3 208-00400-XX ASC-7800
2 206-77655-91 Sample stage 4 208-00450-41 ASK-7800
3 - Hollow cathode lamps 5 - Graphite tube
4 - PC, LCD, Printer
6 - Hollow cathode lamps
7 - PC, LCD, Printer
Flame Automatic Burner System
This system includes autosampler and atomizer changer units to offer higher flame analysis
efficiency.
Because not only the flame gas flowrate but also the burner head height can be controlled Dedicated HVG Atomic Muffle Furnace System
automatically, parameter settings can be optimized for each element automatically for serial analysis. This system uses an electric furnace to heat the absorption cell for the hydride generation method. It
offers higher sensitivity and better stability than the flame heating method. Because a flame is not
No. P/N Part Name used, it does not require acetylene gas or an air compressor.
1 208-01720-XX AA-7800F/AAC main unit AAC
2 208-00400-XX ASC-7800 No. P/N Part Name
3 208-00490-41 Autosampler stand kit 1 208-01710-XX AA-7800G main unit
4 206-59765-41 Starter kit, ASC flame, WS 2 208-00400-XX ASC-7800
5 - Hollow cathode lamps 3 208-00450-41 ASK-7800
6 - PC, LCD, Printer 4 208-00900-XX HVG-100 hydride vapor generator
5 206-67563 Nozzle ASSY, HVG
6 208-00950-47 AMF-100 Atomic Absorption Muffle Furnace
Organic Solvent-Resistant Flame System
7 206-83755-91 Mounting adapter
This system enables flame analysis of various organic solvents, such as petroleum, MIBK, or butyl 8 - Hollow cathode lamps
acetate.
The automatic gas flowrate optimization function makes it easy to switch over to organic 9 - PC, LCD, Printer
solvent analysis, which requires determining the optimal flame gas flowrate value.
No. P/N Part Name
1 208-01700-XX AA-7800F main unit Manual Dual Atomizer System
2 016-37619-01 Drain tube for organic solvents This manual dual atomizer system is used to manually switch between flame and furnace modes.
3 206-77620-XX O-ring for organic solvents* It also supports changing the burner angle or using an atomic muffle furnace for a wide range
4 208-00400-XX ASC-7800 of analyses.
5 208-00490-41 Autosampler stand kit No. P/N Part Name
6 206-59765-42 Starter kit, ASC flame, OS 1 208-01700-XX AA-7800F main unit
7 - Hollow cathode lamps 2 208-00320-58 GFA-7800
8 - PC, LCD, Printer 3 208-00480-41 MAC-7800
* Select the O-ring best suited to the given type of organic solvent. 4 208-00400-XX ASC-7800
For information about compatible organic solvents, contact your Shimadzu representative.
5 208-00450-41 ASK-7800
6 206-59765-41 Starter kit, ASC flame, WS
HVG Flame System 7 - Graphite tube
This system is for rapid high-accuracy quantitation of elements such as As, Se, and Sb. 8 - Hollow cathode lamps
Hydride generated by a hydride vapor generator (HVG) is injected into an absorption cell, which 9 - PC, LCD, Printer
is heated with a flame to atomize components for measurement by atomic absorption spectrometry.
Used in conjunction with an autosampler, it enables automated serial analysis of up to 60 samples.
No. P/N Part Name
1 208-01700-XX AA-7800F main unit Automatic Dual Atomizer System
2 208-00400-XX ASC-7800 This system uses software operations to automatically and quickly switch between flame and furnace
modes.
3 208-00490-41 Autosampler stand kit
The burner head height can also be controlled automatically.
4 206-59765-41 Starter kit, ASC flame, WS
The system is especially recommended for routine analysis that involves frequently switching AUTO
5 208-00900-XX HVG-100 hydride vapor generator between flame and furnace modes.
6 206-67563 Nozzle ASSY, HVG
7 - Hollow cathode lamps No. P/N Part Name
8 - PC, LCD, Printer 1 208-01720-XX AA-7800F/AAC main unit
2 208-00320-58 GFA-7800
3 208-00400-XX ASC-7800
Note: Depending on the desired system configuration, a separate compressor, gas pressure regulator, water cooling equipment, or other equipment may be required. 4 208-00450-41 ASK-7800
(Refer to pages 16 and 17.)
Note: Hollow cathode lamps are sold separately. Order the type of lamp necessary for the given elements being analyzed and the background correction method. 5 206-59765-41 Starter kit, ASC flame, WS
6 - Graphite tube
7 - Hollow cathode lamps
Hollow Cathode Lamps
8 - PC, LCD, Printer
Part Name P/N Remarks
L-233 series 200-38422-XX
L-2433 series 200-38456-XX Supports SR method
