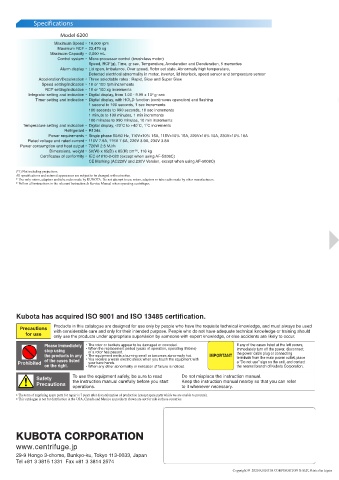

Specifications

Model 6200

Maximum Speed・ 16,000 rpm

Maximum RCF・ 23,470 xg

Maximum Capacity・ 2,000 mL

Control system・ Micro-processor control (brush-less motor)
Speed, RCF(g), Time, g·sec, Temperature, Acceleration and Deceleration, 5 memories

Alarm display・ Lid open, Imbalance, Over speed, Rotor set state, Abnormally high temperature,
Detected electrical abnormality in motor, inverter, lid interlock, speed sensor and temperature sensor

Acceleration/Deceleration・ Three selectable rates : Rapid, Slow and Super Slow

Speed setting/indication・ 10 or 100 rpm increments

RCF setting/indication・ 10 or 100 xg increments

Integrator setting and indication・ Digital display, from 1.00 - 9.99 x 10 g·sec
9
Timer setting and indication・ Digital display, with HOLD function (continuous operation) and flashing

1 second to 100 seconds, 1 sec increments
100 seconds to 990 seconds, 10 sec increments
1 minute to 100 minutes, 1 min increments
100 minutes to 990 minutes, 10 min increments
Temperature setting and indication・ Digital display, -20˚C to +40˚C, 1˚C increments

Refrigerant・ R134a
Power requirements・ Single phase 50/60 Hz, 110V±10% 15A, 115V±10% 15A, 220V±10% 10A, 230V±10% 10A

Rated voltage and rated current・ 110V 7.9A, 115V 7.6A, 220V 3.9A, 230V 3.8A

Power consumption and heat output・ 720W 2.6 MJ/h
Dimensions, weight・ 50(W) x 65(D) x 85(H) cm , 118 kg

(*1)

Certificates of conformity・ IEC 61010-2-020 (except when using AF-5008C)
CE Marking (AC220V and 230V Version, except when using AF-5008C)
(*1) Not including projections.
All specifications and external appearance are subject to be changed without notice.
* Use only rotors, adaptors and tube racks made by KUBOTA. Do not attempt to use rotors, adaptors or tube racks made by other manufacturers.
* Follow all instructions in the relevant Instruction & Service Manual when operating centrifuges.

Kubota has acquired ISO 9001 and ISO 13485 certification.
Products in this catalogue are designed for use only by people who have the requisite technical knowledge, and must always be used
Precautions
with considerable care and only for their intended purpose. People who do not have adequate technical knowledge or training should
for use
only use the products under appropriate supervision by someone with expert knowledge, or else accidents are likely to occur.
Please immediately • The rotor or buckets appear to be damaged or corroded. If any of the cases listed at the left occurs,
• When the replacement period (years of operation, operating lifetime)
stop using of a rotor has passed. immediately turn off the power, disconnect
the power cable plug or connecting
the products in any • The equipment emits a burning smell or becomes abnormally hot. IMPORTANT terminals from the main power outlet, place
of the cases listed • You receive a weak electric shock when you touch the equipment with a “Do not use” sign on the unit, and contact
Prohibited your bare hands.
on the right. • When any other abnormality or indication of failure is noticed. the nearest branch of Kubota Corporation.
Safety To use the equipment safely, be sure to read Do not misplace the instruction manual.
the instruction manual carefully before you start
Keep the instruction manual nearby so that you can refer
Precautions
operations. to it whenever necessary.
• The term of supplying spare parts for repair is 7 years after discontinuation of production (except spare parts which we are unable to procure).
• This catalogue is not for distribution in the USA, Canada and Mexico as products shown are not for sale in these countries.
