P. 4

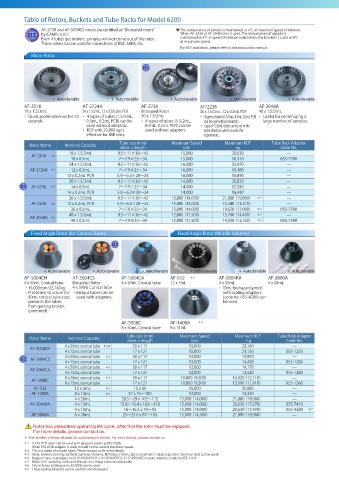

Table of Rotors, Buckets and Tube Racks for Model 6200
AF-2730 and AF-5004CS rotors are certified as “Biosealed rotors” ◉ The temperature of sample is maintained at 4℃ at maximum speed of rotation.
by CAMR (U.K.). When AF-2236 or AF-2048 rotor is used, The temperature of sample is
Even if tubes get broken, samples will not come out of the rotor. maintained at 4℃ at speed of rotation indicated in the brackets ( ), and at 8℃
at maximum speed.
These rotors can be used for inspections of BSE, SARS, etc.
For RCF indication, please refer to the instruction manual.
Micro Rotor
＊ Autoclavable ＊ Autoclavable ＊ Autoclavable ＊ Autoclavable ＊ Autoclavable
AF-2018 AF-2724A AF-2730 AF-2236 AF-2048A
18 x 1.5/2mL 24 x 1.5/2mL, 12 x 0.5/0.2mL PCR Biosealed Rotor 36 x 1.5/2mL, 12 x 0.2mL PCR 48 x 1.5/2mL
・ Quick acceleration within 10 ・ 4 types of tubes (1.5/2mL, 30 x 1.5/2mL ・ 4 types of tubes (1.5/2mL, 0.5mL, 0.2mL PCR) ・ Useful for centrifuging a
seconds 0.5mL, 0.2mL PCR) can be ・ 4 types of tubes (1.5/2mL, can be used without adaptors. large number of samples.
used without adaptors. 0.5mL, 0.2mL PCR) can be ・ Caps of 1.5/2mL tubes can be set in the
・ RCF with 20,000 xg is used without adaptors. same direction, which is useful for
effective for BSE tests. experiments.
Tube size (mm) Maximum Speed Maximum RCF Tube Rack Adaptor
Rotor Name Nominal Capacity
diam. x length rpm xg Code No.
18 x 1.5/2mL 9.5〜11×36〜42 15,000 20,630 —
AF-2018 ＊1
18 x 0.5mL 7〜7.9×25〜34 15,000 18,110 055-7590
24 x 1.5/2mL 9.5〜11×36〜42 16,000 23,470 —
AF-2724A ＊1 12 x 0.5mL 7〜7.9×25〜34 16,000 19,180 —
12 x 0.2mL PCR 5.9〜6.3×20〜24 16,000 16,890 —
30 x 1.5/2mL 9.5〜11×36〜42 14,000 20,820 —
AF-2730 ＊1 14 x 0.5mL 7〜7.9×25〜34 14,000 17,530 —
14 x 0.2mL PCR 5.9〜6.3×20〜24 14,000 16,430 —
36 x 1.5/2mL 9.5〜11×36〜42 15,000（14,000） 21,880（19,060） ＊2 —
AF-2236 ＊1 12 x 0.2mL PCR 5.9〜6.3×20〜24 15,000（14,000） 15,340（13,370） —
36 x 0.5mL 7〜7.9×25〜34 15,000（14,000） 19,620（17,090） ＊2 055-7590
48 x 1.5/2mL 9.5〜11×36〜42 12,000（11,500） 15,780（14,490） ＊2 —
AF-2048A ＊1
48 x 0.5mL 7〜7.9×25〜34 12,000（11,500） 14,330（13,160） ＊2 055-7590
Fixed Angle Rotor (for Conical Tubes) Fixed Angle Rotor (Middle Volume)
＊ Autoclavable ＊ Autoclavable ＊ Autoclavable ＊ Autoclavable ＊ Autoclavable ＊ Autoclavable
AF-5004CH AF-5004CS AF-5004CA AF-512 ＊ 5 AF-5004RA AF-3806A
4 x 50mL Conical tube Biosealed Rotor 4 x 50mL Conical tube 12 x 5mL 4 x 50mL 6 x 38mL
・15,000rpm/22,140xg 4 x 50mL Conical tube ・ 10mL biohazard-proof
・Protective structure for ・Various tubes can be with sealing adaptors
50mL conical tube caps used with adaptors. (code no. 055-4280) can
prevents the tubes be used.
from getting broken.
(patented)
AF-5008C AF-1408A ＊ 6
8 x 50mL Conical tube 8 x 14mL
Tube size (mm) Maximum Speed Maximum RCF Tube Rack Adaptor
Rotor Name Nominal Capacity
diam. x length rpm ×g Code No.
4 x 50mL conical tube ＊3,4 30 x 117 15,000 22,140 —
AF-5004CH
4 x 15mL conical tube 17 x 121 15,000 21,130 055-1250
4 x 50mL conical tube ＊3 30 x 117 12,000 14,970 —
AF-5004CS
4 x 15mL conical tube 17 x 121 12,000 14,490 055-1280
4 x 50mL conical tube ＊3 30 x 117 12,000 14,170 —
AF-5004CA
4 x 15mL conical tube 17 x 121 12,000 13,520 055-1280
8 x 50mL conical tube ＊3 30 x 117 10,000（9,500） 13,420（12,110） —
AF-5008C
8 x 15mL conical tube 17 x 121 10,000（9,500） 13,190（11,910） 055-1280
AF-512 12 x 5mL ＊5 15 x 59 15,000 20,880 —
AF-1408A 8 x 14mL ＊6 17 x 75〜100 12,000 14,330 —
4 x 50mL 28.5〜29 x 102〜115 15,000（14,000） 21,880（19,060） —
AF-5004RA 4 x 12mL 15.8〜16.4 x 103〜110 15,000（14,000） 20,630（17,970） 055-7410
4 x 10mL 16〜16.3 x 79〜92 15,000（14,000） 20,630（17,970） 055-4280 ＊7
AF-3806A 6 x 38mL 25〜25.6 x 87〜103 15,000（14,500） 21,880（19,060） —
Rotor has prescribed operating life cycle, after that the rotor must be replaced.
For more details, please contact us.
＊ The number of times allowed for autoclaving is limited. For more details, please contact us.
＊1 0.2mL PCR tubes can be used with adaptors (code no.055-0500).
When 055-0500 adaptor is used, it could not be used at maximum speed.
＊2 This is a speed of outside tubes. Please contact us for more details.
＊3 Iwaki, Greiner, Corning, Sarstedt, Sumiron, Vioramo, BD falcon, Fisher, Labcon and Nunc's tubes (cap diam. 36mm or less) can be used.
＊4 Nalgene tubes (catalogue no.3110-0500/PPCO, 3110-9500/PPCO, 3117-9500/PC) require adaptors (code no.055-1110).
＊5 Biobic 5mL sampling tubes and Watson 5mL mega tubes are applicable.
＊6 Falcon tubes (catalogue no.352059) can be used.
＊7 These sealing adaptors can be used for anti-biohazard.
